How the National Research Council of Canada advances drone capabilities

How the National Research Council of Canada advances drone capabilities

Mar 20, 2026 | BVLOS, InDro News, National Research Council, Scott Simmie

By Scott Simmie



Canada’s drone industry, along with drone technology in general, have advanced immensely over the past decade, and at an even greater pace over the past few years.

But there are still some tricky areas, particularly as industry tries to take advantage of Transport Canada’s new regulations that permit routine, low-risk Beyond Visual Line of Sight flights. For example, what is an effective Detect and Avoid (DAA) system? How can AI be best put to use for identifying aspects of critical infrastructure that require maintenance? And how can long-range BVLOS flights best serve the needs of remote First Nations communities?

These are all questions worth asking. And, thankfully, the National Research Council of Canada (NRC) has been collaborating with academia, industry partners and First Nations communities in a coordinated effort to find solutions.

Above: An NRC image showing a drone on a BVLOS flight in BC as part of a research project. Below: A custom modified drone InDro piloted for NRC research on urban wind tunnels in Montreal. That wishbone device carries two separate, high-precision anemometers mounted at different angles to detect turbulence, eddies, wind shear etc.

NRC Wind Tunnel Montreal Eric

MORE THAN DRONE SITE SELECTION



Pretty much everyone in the drone industry is familiar with the NRC’s Drone Site Selection Tool, or DSST. Available as a mobile app or via browser, the DSST allows operators to check airspace and determine permissible operations for all levels of drone operation (ie sub-250g, Basic, Advanced, and Level One Complex low-risk BVLOS). It shows restricted, controlled and safe flying areas for all categories at a glance, and even includes a measurement tool so you can be certain your operations meet Transport Canada requirements. (You can access the browser version of the DSST here.)

While the DSST is an indispensable tool for operators, the NRC is also involved with highly complex research. Back in 2019, it launched its Integrated Air Mobility Program – which collaborates with outside partners to develop new technologies that could benefit the industry while enhancing safe operations.

“The NRC works with industry, academia, and the public sector to develop critical and key technologies to strengthen Canada’s supply chain, develop new technology solutions, support the development of UAS regulations, and enrich our talent pool of highly skilled aerospace researchers.”

One example of that research was referenced in the photo above, where the NRC’s Integrated Air Mobility Program examined how urban wind tunnels can potentially impact RPAS operations. InDro captured real-world data from the air, which was compared with data produced by wind-tunnel testing of a scale model of downtown Montreal. We wrote about that research here (and if you want a really deep technical dive you can find the research paper here).



MUCH, MUCH MORE



Montreal is but one example. The NRC has been involved with multiple projects and has or is developing technologies including:

  • optical sensor Detect-and-Avoid systems
  • drone docking technologies for drone work that involves physical contact with an object during an aerial task (such as non-destructive testing)
  • the manufacturing of high-density, safe ceramic lithium batteries – ideal for low-emission hybrid-electric propulsion



Several of the NRC’s more recent projects (with academic and industry partners) involved developing and testing AI and Machine Vision software for detailed mapping and structural inspection, as well as a system that allows a drone to plan, execute and land its mission completely autonomously – perfect for routine deliveries.

“Researchers and engineers from Toronto Metropolitan University, led by Professor Farrokh Janabi‑Sharifi, teamed up with InDro Robotics and the Cowichan Tribes to create intelligent flight‑planning systems that allow drones to pick up and deliver packages safely,” writes the NRC.

“This project marks a significant milestone in advancing drone technologies. The collective expertise, dedication and innovation of all partners were instrumental in achieving the project objectives,” says Prof. Janabi-Sharifi.

Below: The team during a testing day in Cowichan, BC. InDro’s Training and Regulatory Specialist Kate Klassen appears second from left. NRC image

INDRO NRC

INDRO’S TAKE



We’re proud to work with NRC and its Integrated Aerial Mobility program, along with other partners. And we’re pleased the NRC feels this latest project was so successful:

“The results were promising,” says the NRC. “The systems proved they could help drones fly safely in remote environments, avoid obstacles, and land accurately. These advances in Remotely Piloted Aircraft System (RPAS) technology could transform how Canada delivers goods and inspects infrastructure in hard‑to‑reach places.”

Part of that goal – specifically, safe and autonomous BVLOS deliveries – will help enable a long-term project involving InDro and multiple partners to deliver medical supplies to remote First Nations communities in northern British Columbia. Such NRC projects help lay the groundwork that ultimately benefits the industry as a whole.

“Projects like this show what’s possible when industry, academia, First Nation and research partners collaborate,” says Philip Reece, Founder and CEO of InDro Robotics. “By testing advanced technologies in real environments, we’re helping ensure these innovations serve Canadians in meaningful ways.”



New research on urban wind turbulence released; InDro assists with research

New research on urban wind turbulence released; InDro assists with research

Aug 25, 2025 | InDro News, Industry News, National Research Council, Transport Canada

By Scott Simmie



Flying a drone in congested urban centres is tricky.

Not only does the operator have to be aware of buildings, low-flying helicopters and people and property on the ground, but on many days there’s an unseen force at work that can cause havoc for safe RPAS flight: Wind. Specifically, the turbulence, wind tunnels and even wind shear that can be created when wind passes between and over buildings.

“Urban environments create a variety of exacerbated micro-level wind effects including shear, turbulence and eddies around buildings. These effects can locally increase reported wind speeds by up to 50 per cent,” says Dr. Eric Saczuk, InDro’s Flight Operations Lead and head of RPAS Operations at the BC Institute of Technology.

Routine drone flights in dense urban centres are clearly part of the future. That’s why a long-term study into how wind behaves in such settings has been underway, with funding from the Transport Canada RPAS Task Force (now absorbed into a broader Strategy and Emerging Technologies (SET) Branch and the National Research Council (NRC) Integrated Aerial Mobility Program. Now, a scientific research paper has been published on the preliminary findings – with more research to come.

And the InDro connection? InDro Chief Pilot Dr. Saczuk has been overseeing these flights – with more to come on the immediate horizon. On previous missions, the drone was equipped with an AVSS parachute and a wishbone-like device that carried two precision sonic anemometers positioned to capture windspeed data from different angles. That georeferenced data determines not only the speed and turbulence of the wind, but also the precise direction (and changes in direction, including wind shear) as the drone passes over what could be called an urban wind canyon.

Below: A DJI M300 drone, equipped with additional sensors, during 2023 research. Anemometers are mounted on the end of that wishbone-like brace, with each positioned to capture wind data from different directions

NRC Wind Tunnel Eric

THE RESEARCH – AND THE PAPER



The first phase of this ongoing project involved two very distinct procedures. One involved the drone flights, which included not only navigating wind-tunnel corridors in urban Montreal, but also hovering for periods at specific spots over and adjacent to buildings. Separate anemometers were affixed to the buildings themselves and the data was compared.

The second part took place in the NRC’s wind tunnel. There, a 1:300 scale model of the urban environment the drone flew in was assembled and placed in the tunnel. Measurements were made at various controlled windspeeds. The data from each was then compared for consistency.

The ultimate goal, for this phase of the research, is to be determine whether accurate predictive analytic models could be created that could be used when planning RPAS flights. The research might uncover, for instance, that general wind speeds within the flight parameters of a given RPAS might exceed those limits when passing around and over buildings, resulting in turbulence that would be unsafe for a mission to proceed. Such models will be immensely useful as urban RPAS flights become more routine.

But the first phase was simply to see if the data captured by the drone was in sync with the data produced in the wind tunnel testing.

“The goal of the overall study was to acquire urban-airflow data in a real environment in order to validate equivalent airflow characteristics from model-scale testing,” states the paper.

“The field test was designed to measure urban airflow characteristics using anemometers mounted on a small RPAS. The RPAS was flown along various flight paths in downtown Montréal in 2023. Following the field test, airflow measurements were taken at the equivalent spatial locations in a wind tunnel using a 1:300-scale model of the same test site. Data-processing routines for the RPAS airflow measurements included accounting for the body-motion of the vehicle and applying custom calibration equations for the RPAS-mounted sonic anemometers.”



THE RESULTS



The data obtained by the drone compared favourably with the scale-model tests carried out in the wind tunnel. In other words, the data indicates it may be possible to produce reliable, predictive models of various urban centres by testing scale models within the wind tunnel itself. Eventually, this research could potentially indicate specific locations in cities where turbulence is of particular concern for RPAS flights.

As the report states: “The distribution of mean flow speed and turbulence intensity from the field test compared well with the wind-tunnel results, including the shape of the distribution and location of the maxima. Additionally, the variation in flow characteristics along a flight path, such as mean flow speed and turbulence intensity, compared favourably with wind-tunnel results acquired at the same relative locations. This work demonstrates the suitability of model-scale testing for studying urban flow fields.”

Below: Carrying out research flights in Montreal in the summer of 2023, followed by an in-flight screen capture

NRC Urban Wind Tunnel Eric
NRC Urban Wind Tunnel Eric

INDRO’S TAKE



This is complex research, and these are complex missions to fly. We are pleased to have other partners on board in this research, including McGill University, Place Ville Marie, Îlot Balmoral, Maison du Développement Durable, Hôpital général de Montréal, and the Centre Hospitalier de l’Université de Montréal.

“InDro is pleased to be part of this critical research, which will help ensure safe flights in turbulent urban environments – including models that may one day predict when and where it’s unsafe to carry out missions,” says InDro Founder and CEO Philip Reece. “Of course, there are other challenges flying in cities – including the potential impact of a constellation of RF signals that could interfere with C2 links. We look forward to the next phase of this project.”

This research is ongoing and we have more flights planned in Montreal later in September.

It’s also worth noting we have barely scratched the surface of this exhaustive research paper. For those interested in a more in-depth explanation – along with plenty of data visualisations – you’ll find it here. You can also check out our 2023 flight in this post.

New research on urban wind turbulence released; InDro assists with research

InDro Robotics flies in urban wind tunnels for National Research Council project

Aug 24, 2023 | InDro News, Industry News, National Research Council, Scott Simmie, Transport Canada

By Scott Simmie



Flying a drone in dense urban settings comes with its own set of challenges.

In addition to following regulations laid out in the Canadian Aviation Regulations (CARs) Part IX, operators have to contend with other factors. Helicopters, for example, routinely share urban airspace. And, in addition to surrounding buildings, streets are generally more densely packed with people and vehicles than other locations.

But there’s another factor that can really cause problems: Wind.

Airflow in urban centres is very different from rural settings. The close proximity of multiple buildings can amplify wind speed and create tricky – and invisible – areas of turbulence. These can cause havoc for operators, and potentially for people and property on the ground.

That’s why the National Research Council, in conjunction with Transport Canada and other partners, is conducting research on urban airflow.

Below: The view from the InDro dashboard, showing a wishbone-shaped appendage carrying two anemometers

NRC Urban Wind Tunnel Eric

WHY THE RESEARCH?



The National Research Council is helping to prepare for the future of Urban Air Mobility. That’s the coming world where intra-urban drone flights are routine – and where airspace is seamlessly shared with traditional crewed aircraft. As the NRC states on this page:

“The vertical take-off and landing capability of UAS promises to transform mobility by alleviating congestion in our cities.”

As part of its seven-year Integrated Aerial Mobility program (launched in 2019), the NRC has already been working on developing related technologies, including:

  • “optical sensor-based detect-and-avoid technologies to assist path planning of autonomous vehicles
  • “drone docking technologies to support contact-based aerial robotics tasks
  • “manufacturing of high-density and safe ceramic lithium batteries to enable low-emission hybrid-electric propulsion”

The NRC is also interested in wind. Very interested.



DRONE FLIGHTS IN URBAN CENTRES



Drone delivery – particularly for medical supplies and other critical goods – will be part of this world before long (home deliveries will likely come eventually, but not for some time). In the not-so-distant future, it’s likely that specific air corridors will be set aside for RPAS traffic. It’s also likely, eventually, that an automated system will oversee both drone and crewed aircraft flights to ensure safety.

Part of the path to that future involves looking at the unique characteristics of urban wind patterns – along with the potential challenges they pose to drone flights. Are there certain locations where increased wind speed and turbulence pose a greater risk to safe RPAS operations? What wind speeds might be deemed unsafe? Can data gathered help lead to guidelines, or even additional regulations, for operations in cities? If the speed of wind at ground level is X, might we be able to predict peak turbulence wind speeds? Might drone manufacturers have to revise their own guidelines/parameters to take these conditions into account?

Those are the questions that interest the National Research Council, in conjunction with Transport Canada and other partners. And InDro Robotics is helping to find the answers.

Below: A DJI M300 drone, modified by InDro and specially equipped with anemometers to detect windspeed while avoiding prop wash

NRC Urban Wind Tunnel Eric

RESEARCH



Previous studies have shown that turbulence caused by buildings can indeed impact the stability of RPAS flights. Now, the NRC is keen on digging deeper and gathering more data.

The research is being carried out by NRC’s Aerospace Research Centre, in conjunction with a number of partners – including McGill University, Montreal General Hospital, CHUM Centre Hospital, InDro Robotics and others. The flights are being carried out by InDro’s Flight Operations Lead, Dr. Eric Saczuk (who is also head of RPAS Operations at the BC Institute of Technology).

“Urban environments create a variety of exacerbated micro-level wind effects including shear, turbulence and eddies around buildings. These effects can locally increase reported wind speeds by up to 50 per cent,” says Dr. Saczuk.

InDro has been involved with this research for three years – with earlier flights carried out in the NRC’s wind tunnel. Now, the testing has become more real-world. InDro flies a specially equipped DJI M300. The wishbone-shaped appendage in the photo above carries two tiny anemometers placed specifically to capture windspeed and variations without being affected by the thrust generated by the rotors. The drone is also equipped with an AVSS parachute, since these flights take place over people.



THE MISSIONS



Some months prior to the flights, the NRC installed fixed anemometers on the roofs of the hospitals mentioned above. This allowed researchers to obtain a baseline of typical wind speeds in these areas. Then came the flights.

“Part of our mission is to fly the drone over three different rooftops and lower the drone to hover at 60m and 10m above the anemometer station,” says Dr. Saczuk.

“This allows NRC to compare the wind data recorded by the static anemometers with data captured by the mobile anemometers on the drone. Our launch sites are from the CHUM Centre Hospital and the Montreal General Hospital, which are about three kilometres apart with a pilot at each location. Additionally, we’ll be flying the drone from one hospital to the other and also along an ‘urban canyon’ between the three rooftops.”



NRC Urban Wind Tunnel Eric

CHALLENGES



Flying in urban locations always requires additional caution. The research also demands very precise altitudes while capturing data – along with piloting with the anemometers attached to the drone.

“Gathering the data always has its challenges – especially when operating over a dense downtown core such as Montreal,” he says.

“Many months of planning led to two days of successful data capture on July 26 and 27. One of the main challenges is maintaining C2 connectivity amongst the tall buildings. Another consideration is ensuring a proper center of balance with the added payload well forward of the aircraft. Resultingly, flight endurance is shortened due to the extra load on the motors and thus we had to modify our flight plans to account for this. We learned a lot during the first two days of data capture!”

For Dr. Saczuk, this is a particularly rewarding research project. Why?

“Quite simply because it’s cutting-edge and involves RPAS,” he says.

“We have established a great relationship with the test facility at NRC and Transport Canada, so to know that InDro is involved in helping to understand the potentially adverse effects of flying RPAS around tall buildings for the purpose of making these flights safer feels very rewarding. Personally, I also enjoy challenging missions – and this may well be the most challenging mission I’ve ever flown!”

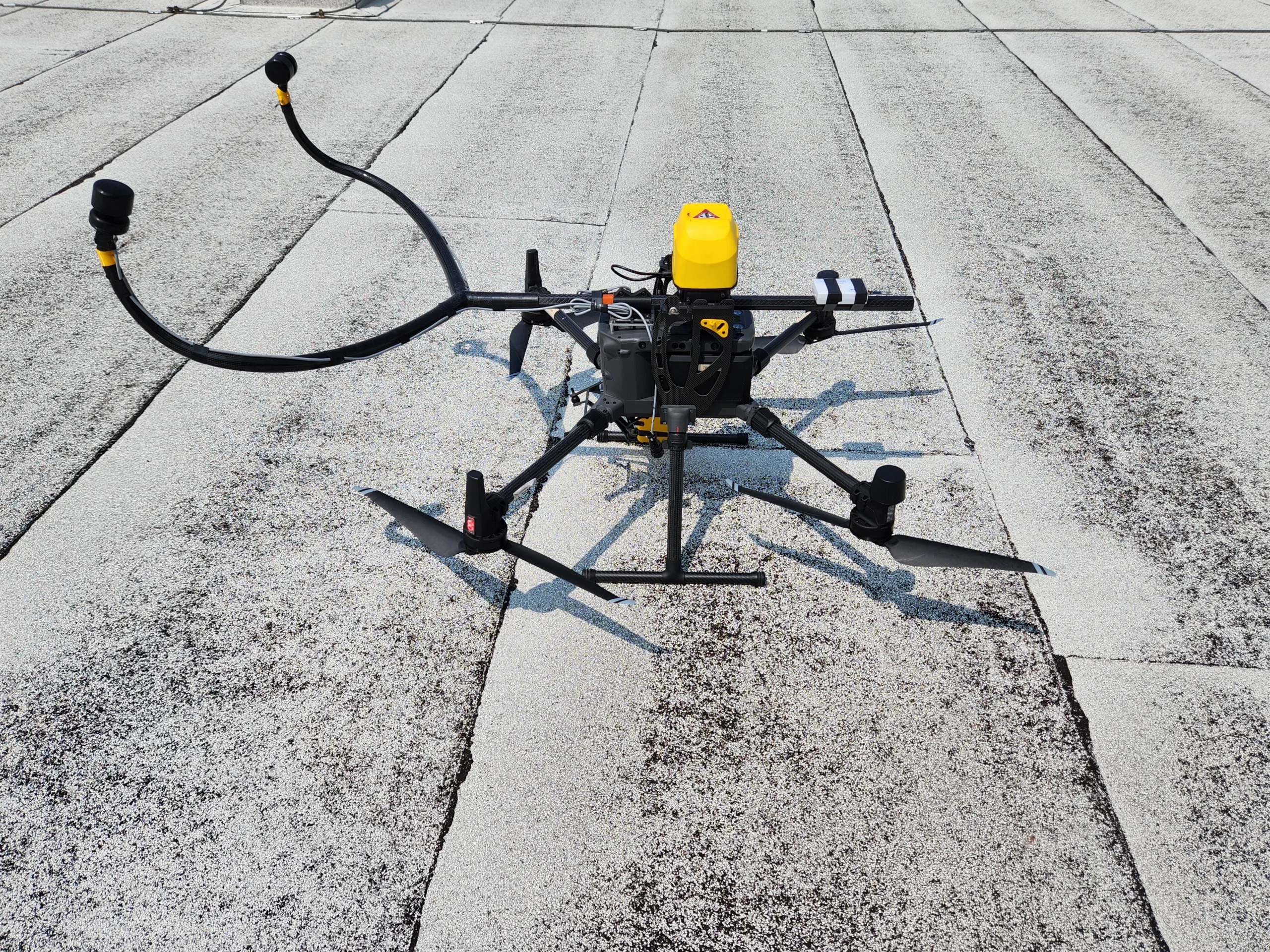

Below: The M300, equipped with the anemometers and looking a bit like a Scarab beetle. The sharp-eyed will notice that the two anemometers are mounted vertically and horizontally

NRC Wind Tunnel Eric

INDRO’S TAKE



InDro Robotics has a long history of involvement with research projects and other partnerships with academia. We are particularly drawn to projects that might have a positive and lasting impact on the industry-at-large, such as this one.

“Urban wind tunnels and turbulence have the potential to disrupt even a well-planned RPAS mission,” says InDro CEO Philip Reece.

“As we move toward more routine drone flights in urban centres, it’s important to capture solid data so that evidence-based decisions can be made and Best Practices evolve. This research will prove valuable to the Canadian RPAS industry – by helping to ensure safer urban drone operations.”

The research is ongoing; we’ll provide updates when further milestones are hit.
