bunker pro

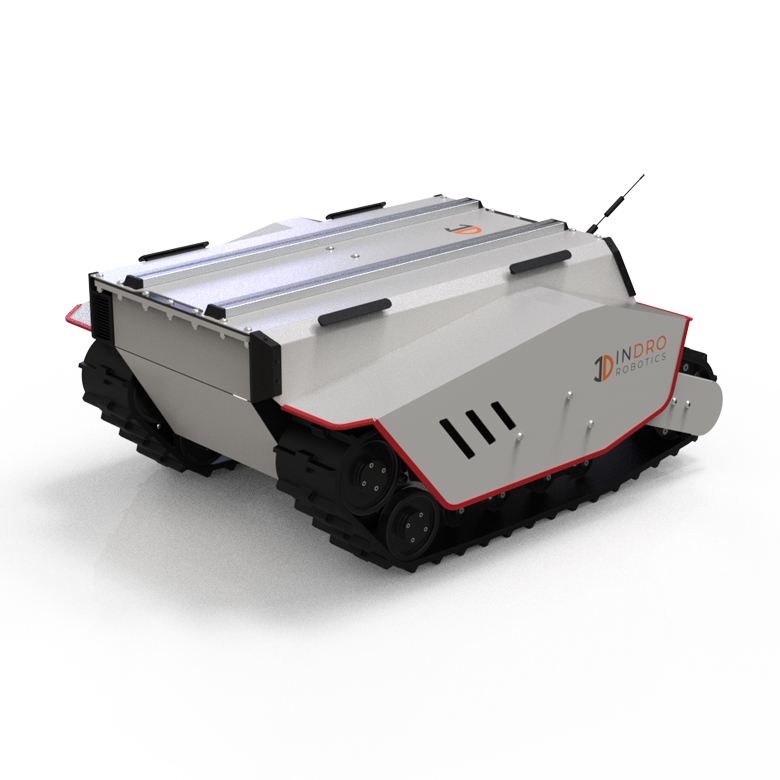

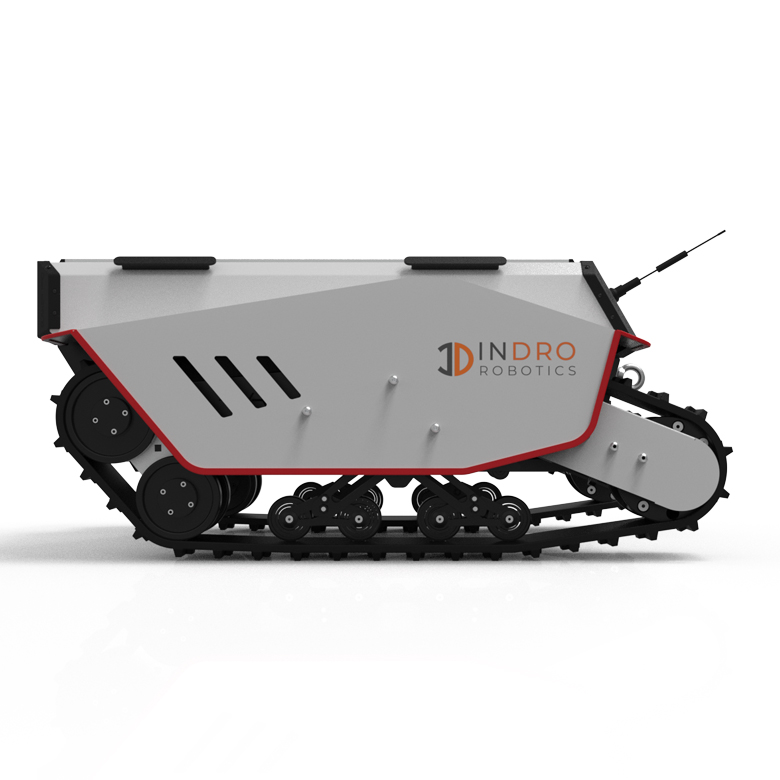

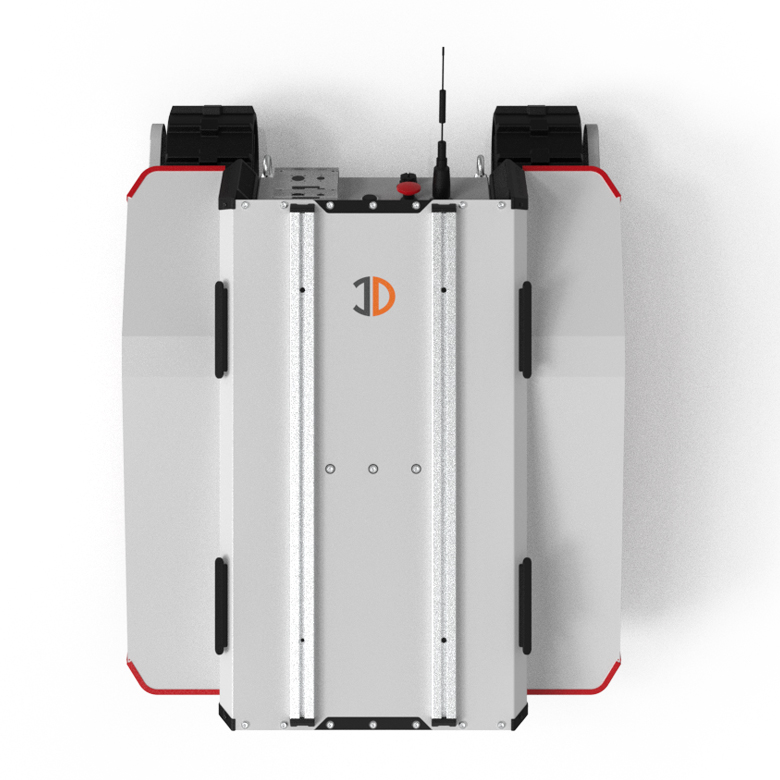

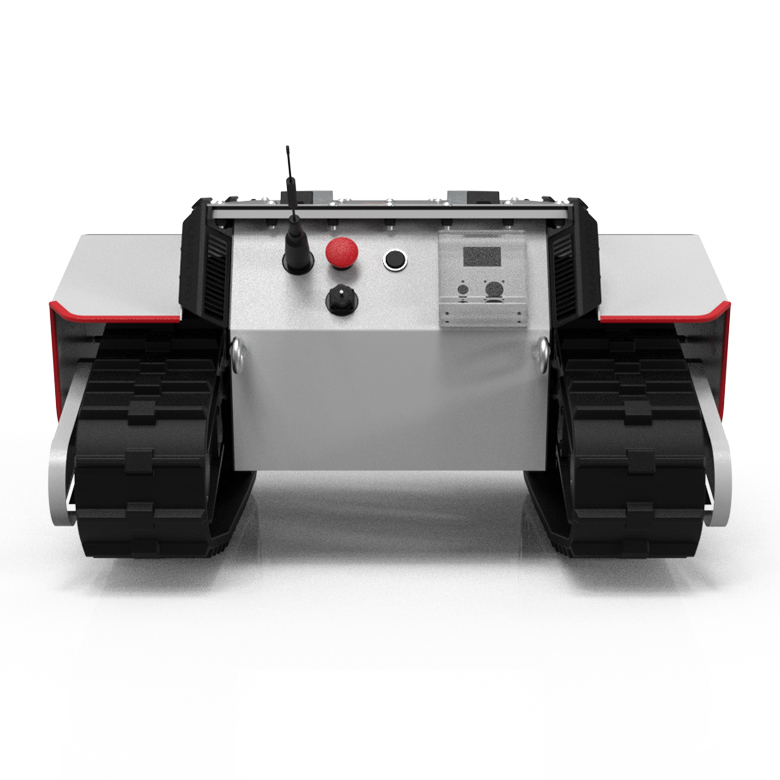

BUNKER Pro is a heavy duty robot that boasts superb off-road performance and high-level IP67. The multi advanced suspension systems and reinforced shock absorbers bring it a unique anti-collision design to tackle challenging real-world terrains.

heavy duty robot bunker pro

key benefits of bunker pro

off-road performance

IP67 IEC Ingress Rating

Heavy duty robots are well-suited for off-road operations. Bunker Pro can traverse obstacles such as rocks, mud, sand, or even stairs. It has the ability to maintain traction and distribute weight over a larger surface area which enables them to handle rugged terrains effectively.

strength and payload

120kg Payload Capacity

Designed to handle substantial loads and perform tasks requiring high strength, Bunker Pro can lift, carry, and manipulate heavy objects or equipment that may be beyond the capabilities of human operators. This capability is particularly valuable in industries such as manufacturing, construction, logistics, and mining.

easily maneuverable

On The Spot Rotation

Although Bunker Pro is a heavy duty robot, it can rotate on the spot by driving the tracks in opposite directions, enabling them to turn within a tight radius. This maneuverability is ideal in confined spaces or when precise positioning is required. The tracks allow it to move with agility, precision, and control.

bunker pro technical drawings

robot development kits

473mm high

1064mm long

845mm wide

bunker pro specifications

Dimensions	1064L x 845W x 473H mm
IEC Ingress Rating	IP67
Weight	150kg
Track Width	150mm
Payload Capacity	120kg
Top Speed	5.4km/h
Runtime	3 Hours
Charging Time	4.5 Hours
Operational Temperature Range	-20°C-60°
Max Climbing Grade	30° (no payload)
Obstacle Clearance	180mm
Wheel Encoder	1024 Line Magnetic Encoder
Battery	48V 60Ah Lithium
Communication Interface	CAN Bus
