ranger

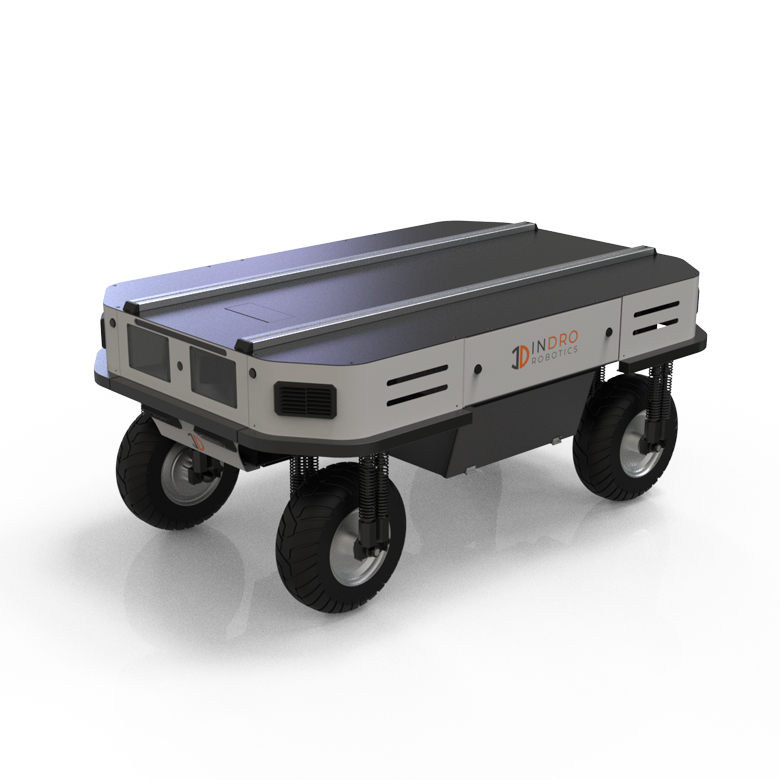

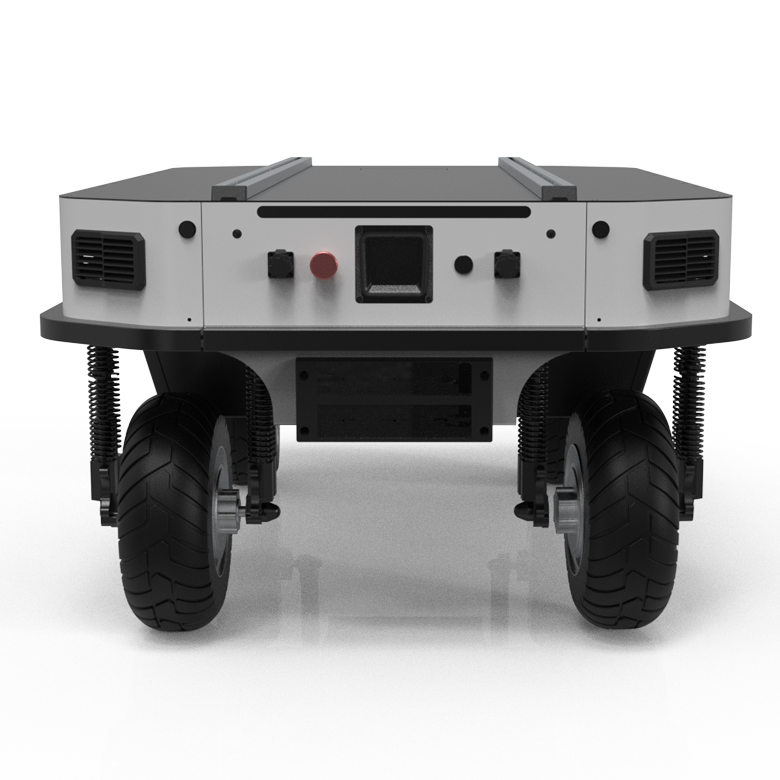

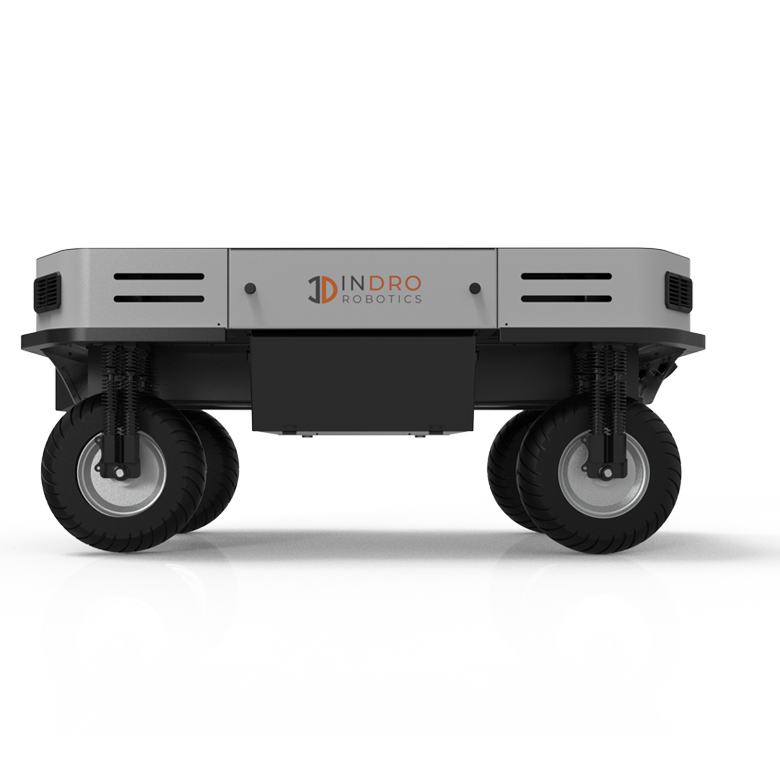

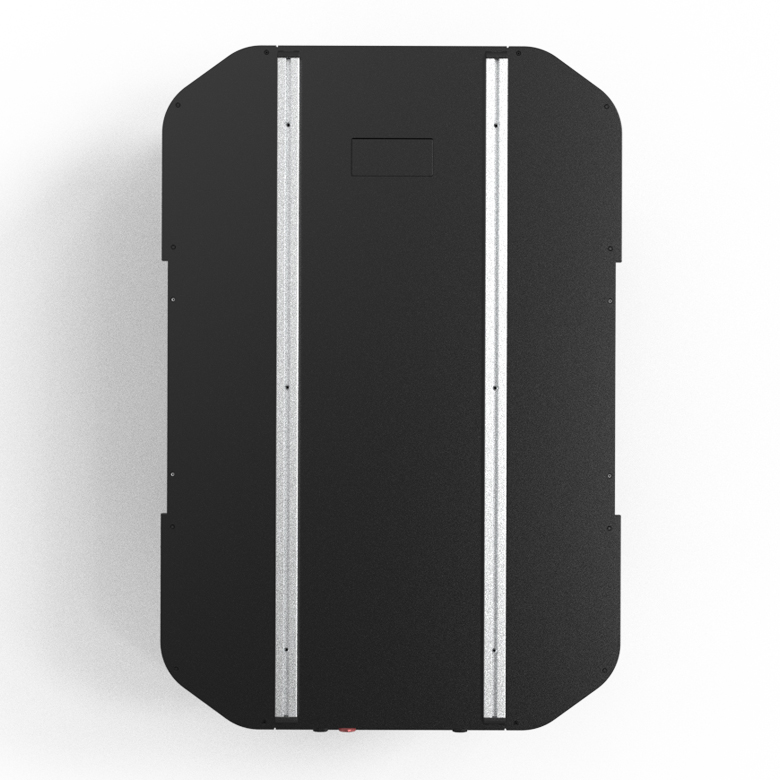

Ranger is a true omnidirectional robot intended for navigating dynamic indoor and outdoor environments while carrying heavy payloads.

heavy duty robot

key benefits of ranger

indoor or outdoor

Ranger offers the advantages of flexibility, cost-effectiveness, streamlined operations, increased efficiency, adaptability, and versatile applications. It is a valuable solution for tasks that require operation in both indoor and outdoor environments, providing optimal performance and functionality across diverse settings.

strength and payload

Designed to handle substantial loads and perform tasks requiring high strength, Ranger can lift, carry, and manipulate heavy objects or equipment that may be beyond the capabilities of human operators. This capability is particularly valuable in industries such as manufacturing, construction, logistics, and mining.

improved battery life

Automatic charging provides convenience, time savings, enhanced safety, improved battery life, flexibility, and energy efficiency. It simplifies the charging process and enhances the user experience, making it a valuable feature in various applications and industries.

ranger technical drawings

robot development kits

245mm high

612mm long

580mm wide

ranger specifications

Height and weight	180cm \| 70kg
Dimensions (WxHxD)	1228mm X 876mm X 520mm
Weight	100KG
Axle Track	560 MM
Motor	48V brushless geared motor
Rated Power	600W*4
Rated Torque	22NM*4
Speed	2.6M/S
Motion Mode	4WD
Maximum Obstacle Height	100mm
Climbing Ability	10
Payloads	150KG
Battery Life	2-8H
Charging Time	1H(Single Battery)
Battery Type	Lithium Battery
Single Battery Capacity	48V 24Ah (Support up to 4 batteries)
Protection Level	IP55
