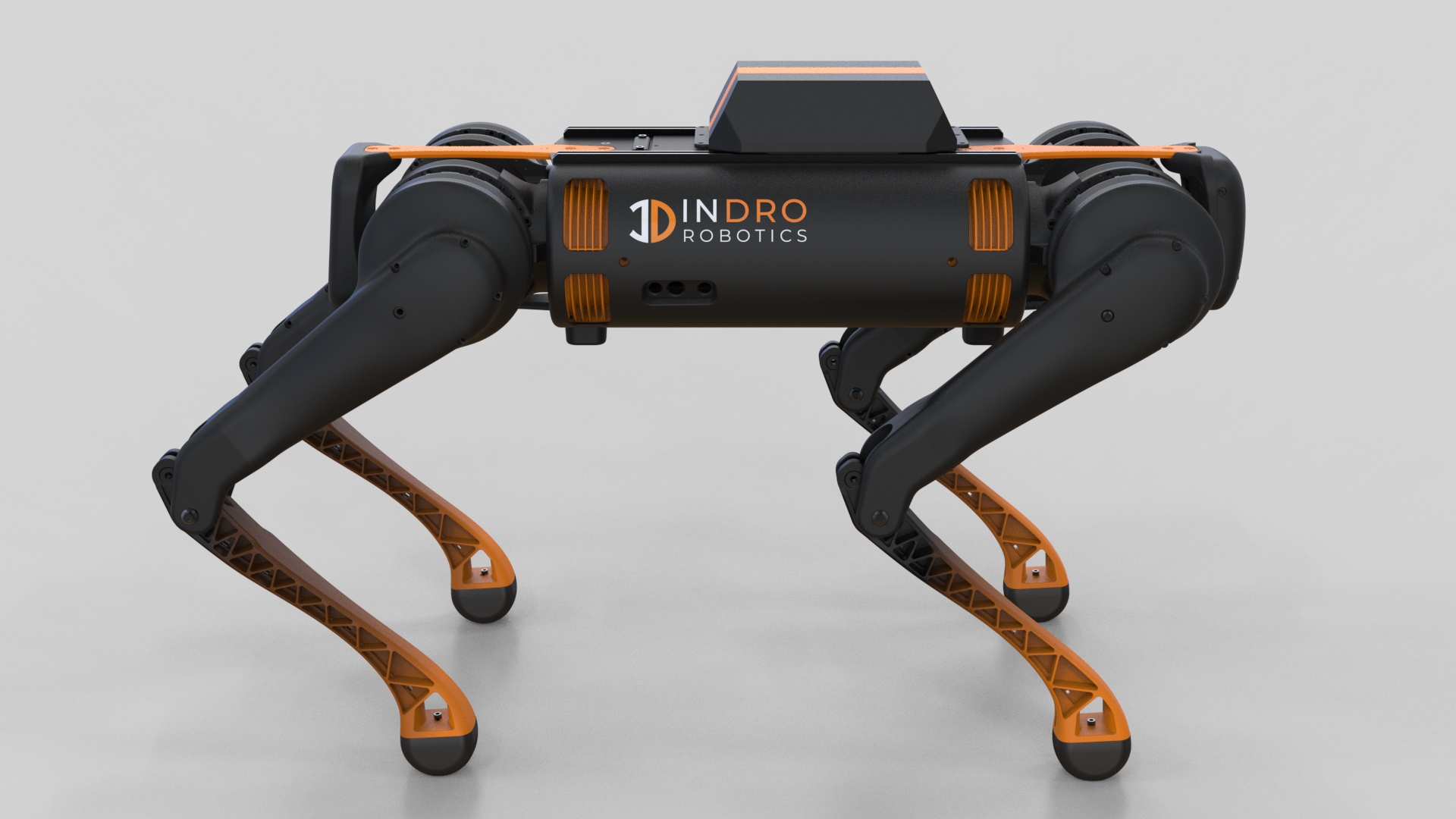

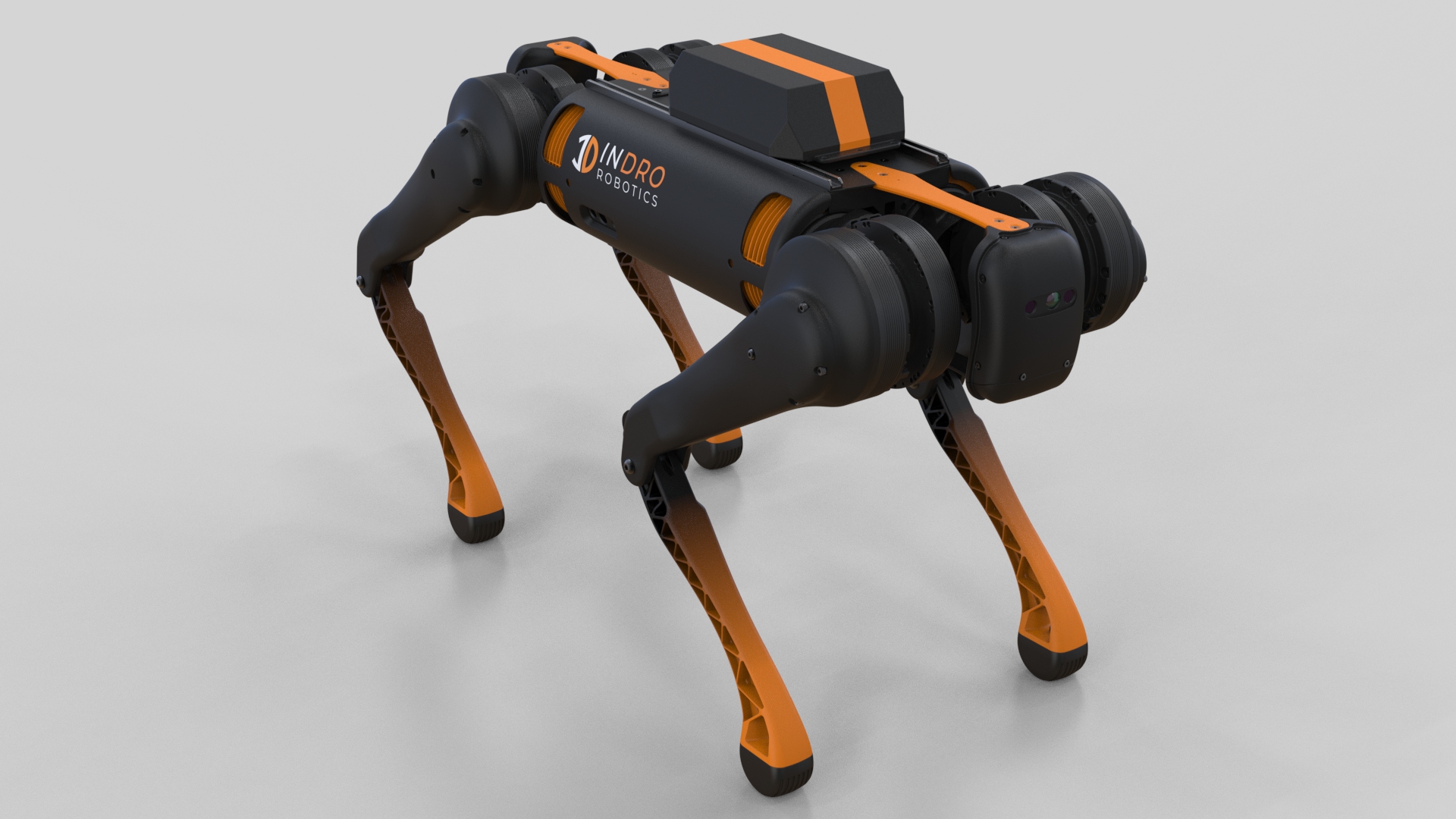

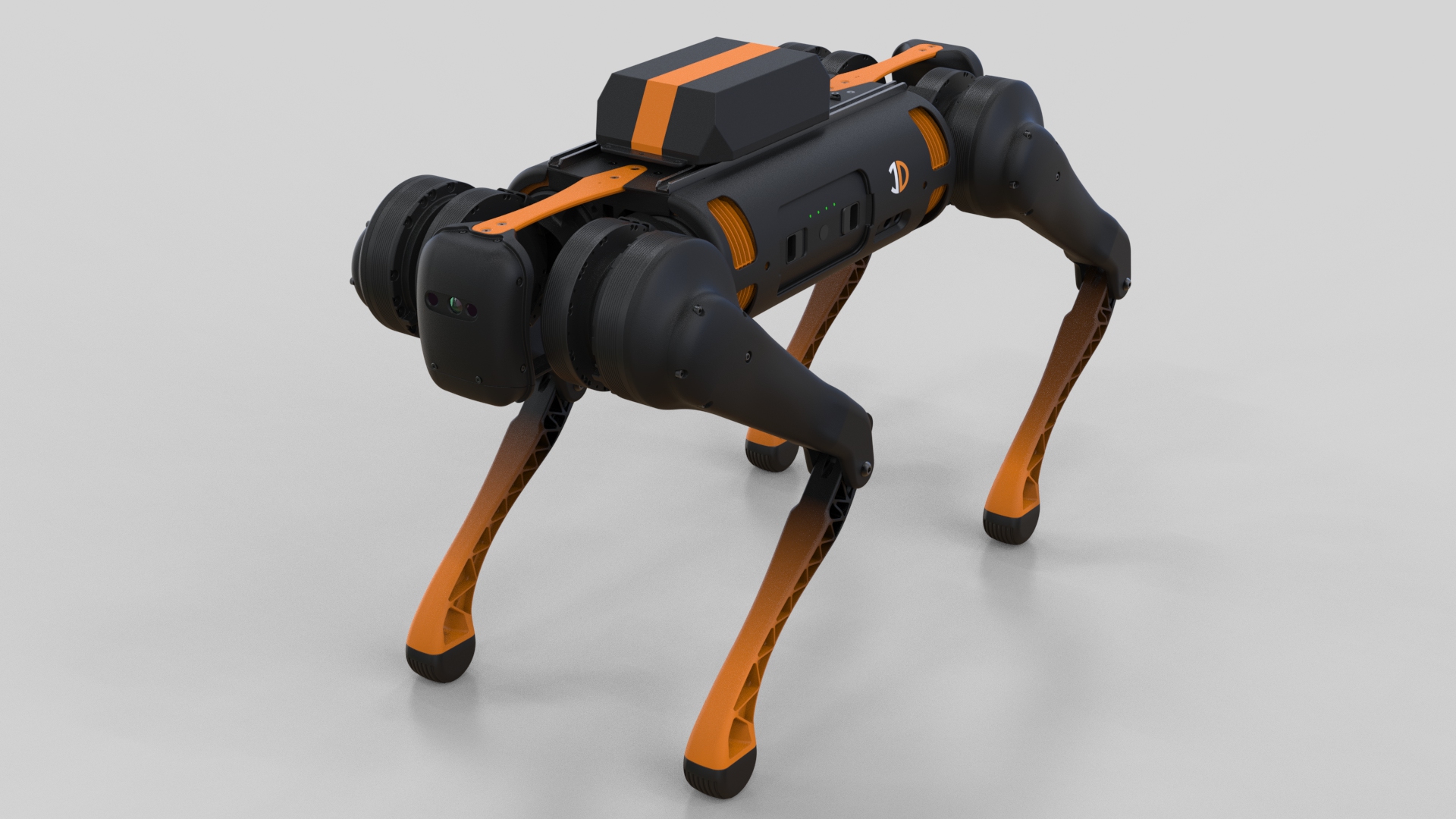

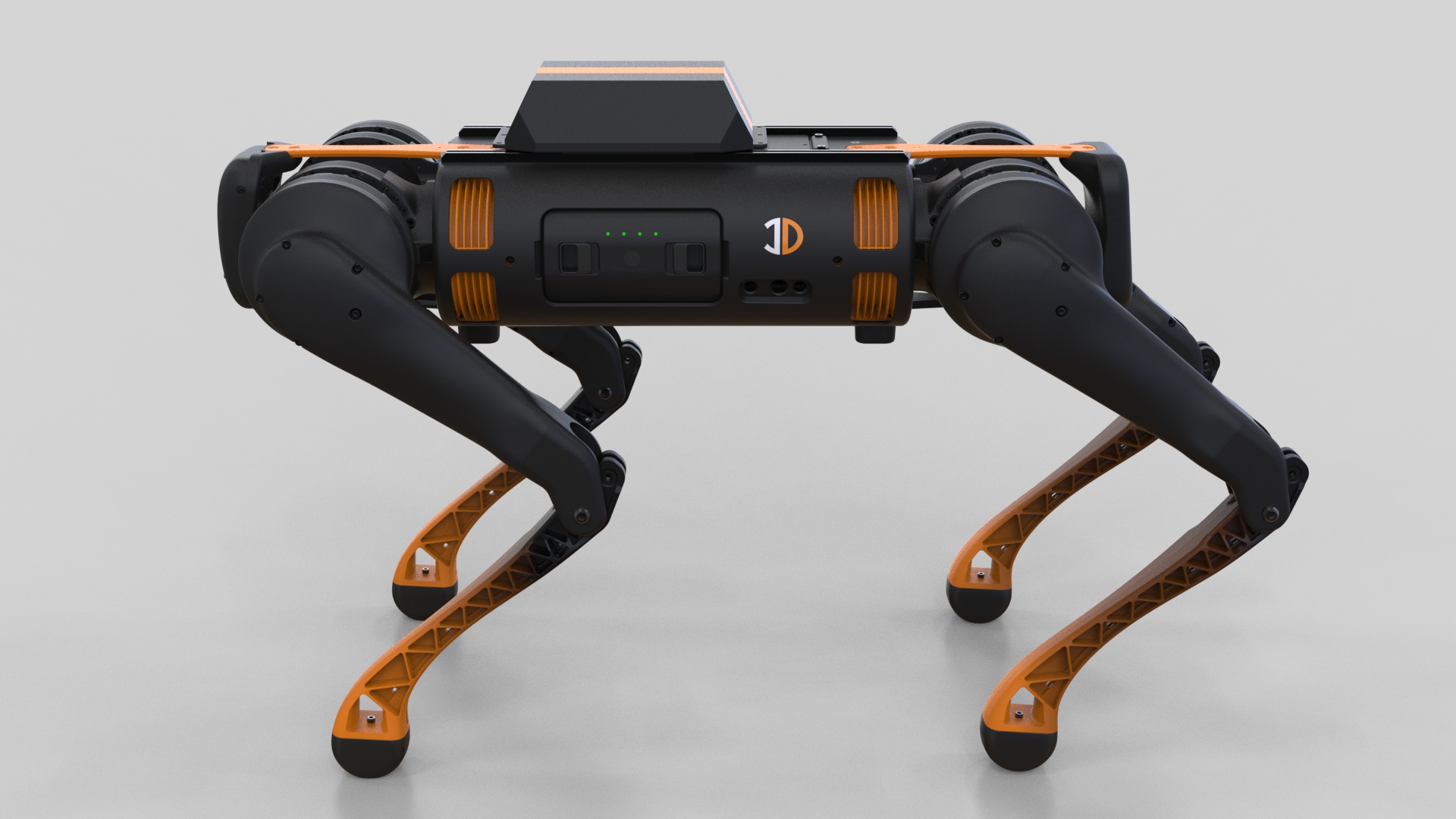

b1 robot

Durable, high performance quadrupeds. With its IP68 rating and large load capacity, this full-size quadruped is capable of navigating dangerous, and underwater, real-world environments with ease. The powerful internal hardware enables the potential for potent commercial functionality.

key benefits of b1 robot

increased range of motion

The flexible and adaptable joints in B1 provide advantages such as increased range of motion, energy efficiency, impact absorption, terrain adaptation, obstacle negotiation, and dynamic stability. This enables it to navigate diverse environments, perform complex tasks, and maintain stability and efficiency.

all-weather operations

B1 is a quadruped with all-weather operation capabilities which offers benefits such as environmental adaptability, robustness, increased operational availability, improved safety and performance, versatile applications, and reduced human exposure to hazards. These advantages make it a valuable asset for various industries and applications that require reliable and versatile robotic systems in challenging or unpredictable weather conditions.

strong and expandable

The B1 quadruped is a versatile and adaptable robotic system that can be customized to suit specific application needs. The expansion space with B1 enables it to extend its functionality beyond its basic locomotion capabilities. By integrating additional modules or equipment, it can perform a wider range of tasks, such as manipulation, inspection, surveillance, or data collection.

b1 technical drawings

robot development kits

636mm high

1126mm long

467mm wide

b1 specifications

Size(Standing)	1126mm×467mm×636mm
Weight (With Battery)	55kg
Ingress Protection	IP68 (optional) IP67 (standard)
Endurance Time	2-2.5h
Max Walking Load (Payload)	20kg
Max Standing Load	80kg
Max Walking Speed	1.2m/s
Fording Depth	1m
Stairways	20cm
Slopes	30°
Perceptual Controller	Jetson Xavier NX*3
Max Instantaneous Torque Of Knee Joint	210N.m
5G wireless network communication, GNSS acquisition (GPS, Beidou, etc.), over-the-horizon communication.	Standard Configuration
Smart manipulator, autonomous charging pile, PTZ camera, security patrol mounting platform, emergency rescue mounting platform.	Optional
