tracer mini

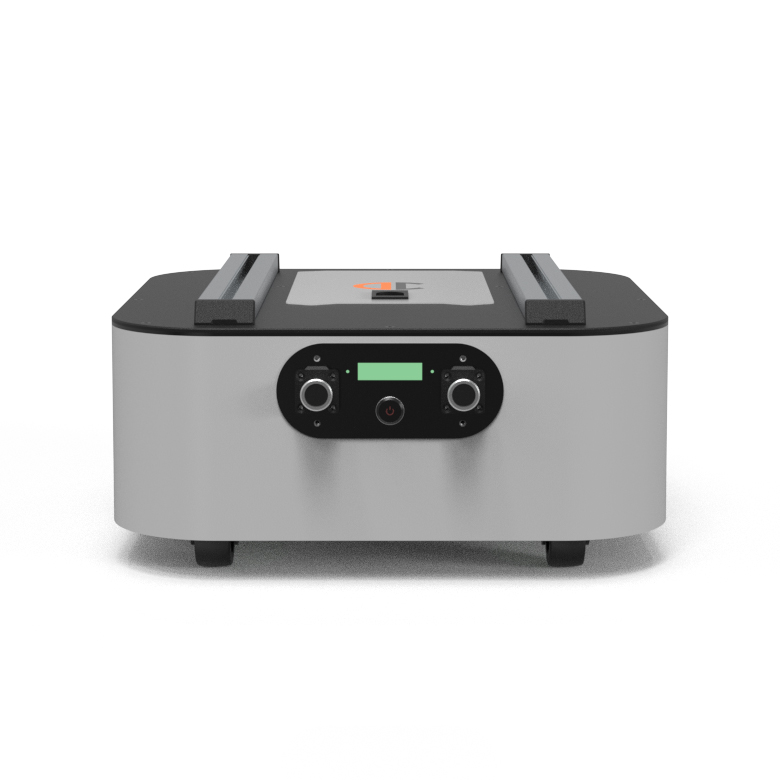

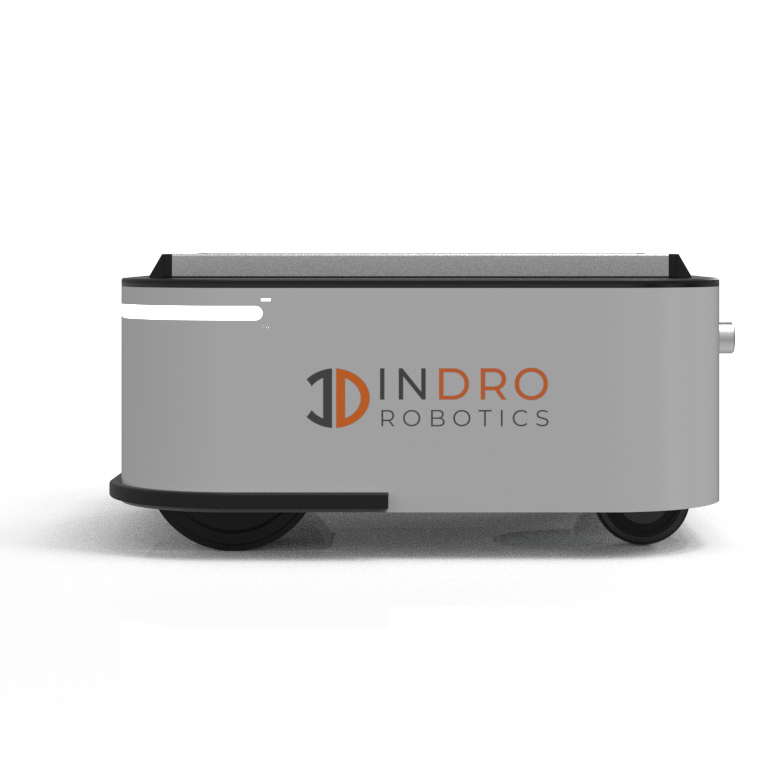

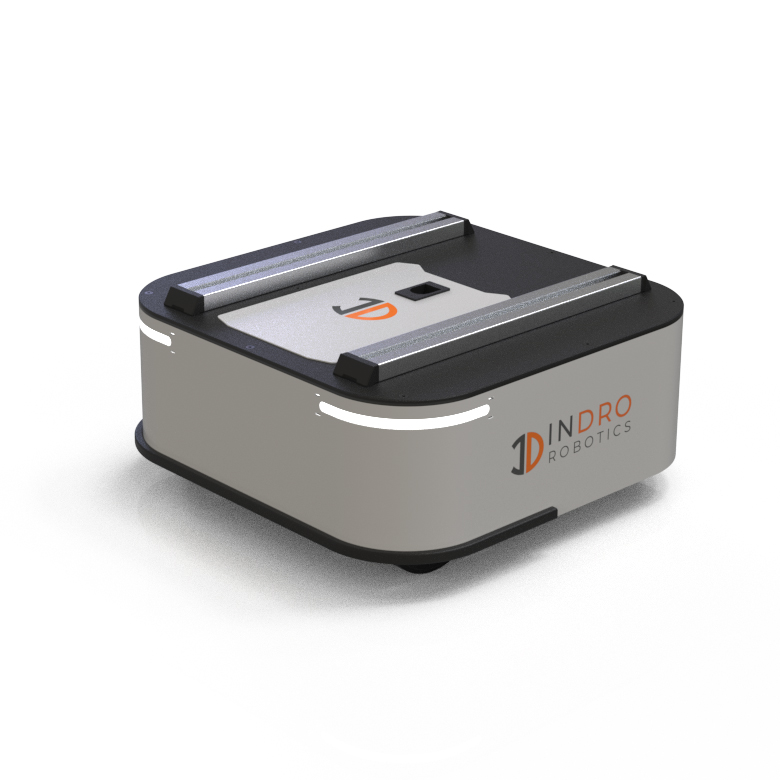

A small automated guided vehicle for indoor use. Highly cost-effective development platform for unmanned delivery and logistics applications.

small automated guided vehicle

key benefits of tracer mini

highly cost effective

The cost-effectiveness of this small AGV often translates into a quicker ROI compared to other automation solutions. The efficiency gains, labour savings, and improved operational productivity contribute to a shorter payback period, making them an attractive investment option.

high speed

Tracer Mini can transport goods and materials at higher speeds, resulting in improved overall throughput and productivity. This AGV can quickly move between different locations, reducing cycle times and increasing the number of tasks completed within a given time frame.

payload capacity

The payload that Tracer Mini can handle means it can transport a wide range of heavy objects, including large components, machinery parts, and equipment. It offers flexibility in material handling operations, allowing for the automation of diverse tasks such as loading and unloading, assembly, palletizing, and machine tending.



size and weight

base weight 25kg
max payload 80kg

speed and performance

max speed 1.8m/s
runtime 3h
Industrial Robotics

Two-Wheel Differential

As a two-wheel differential AGV, Tracer Mini has unique advantages with indoor transportation. The small and flexible structure enables it to freely shuttle in various indoor environments and the single handling efficiency has great advantages because of the high payload capacity in combination with the strong power.

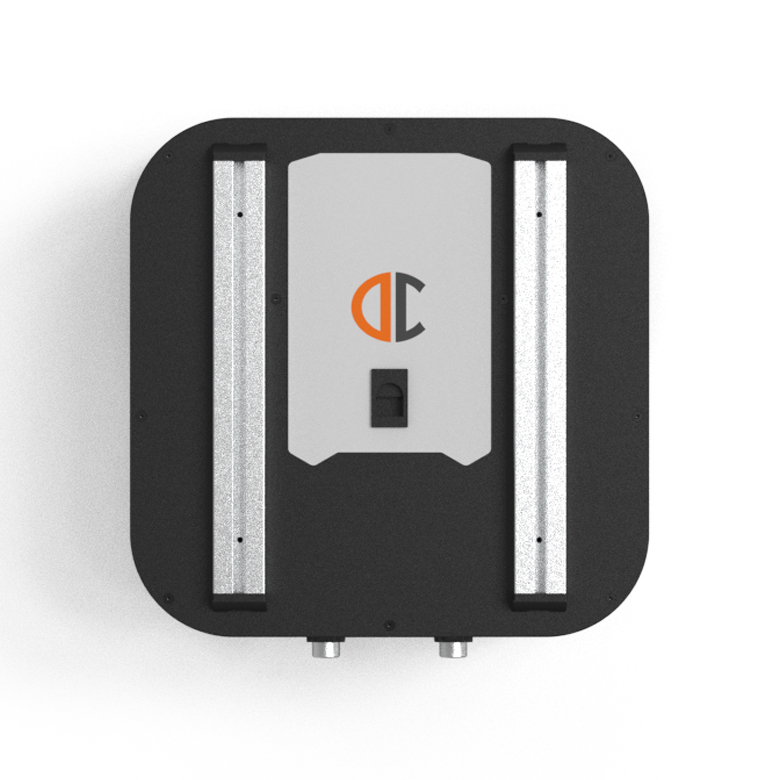

flat design

The flat design of Tracer Mini brings extreme carrying capacity. The two-wheel drive puts the universal wheels in motion with the differential rotation and it can freely move in an indoor environment. It is additionally equipped with swing arm independent suspension which allows Tracer Mini to easily overcome small obstacles.

multiple load expansion

Rapid secondary development is made easy with Tracer Mini.  It can be adapted to lightweight operation mode and users can communicate with the main control through CAN bus protocol.  The open source SDK and ROS PACKAGE are also provided.

seamless integration with

indro and Tracer mini

InDro Robotics UAVs and UGVs
