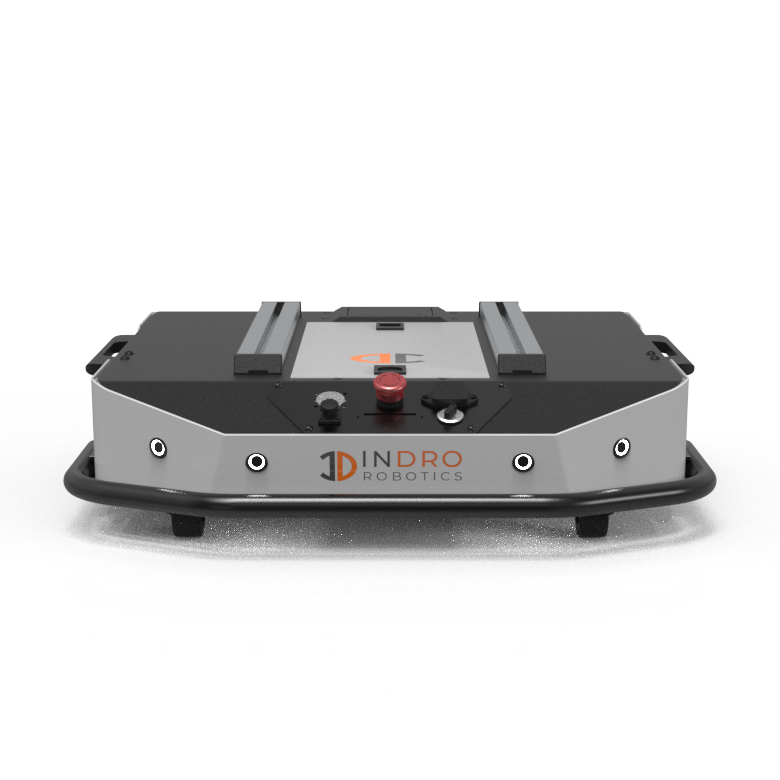

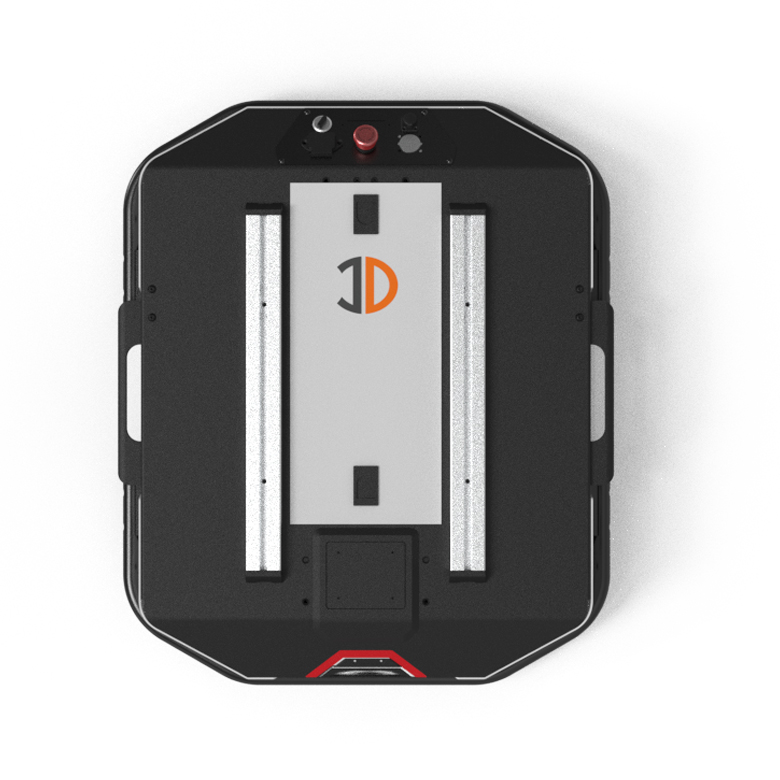

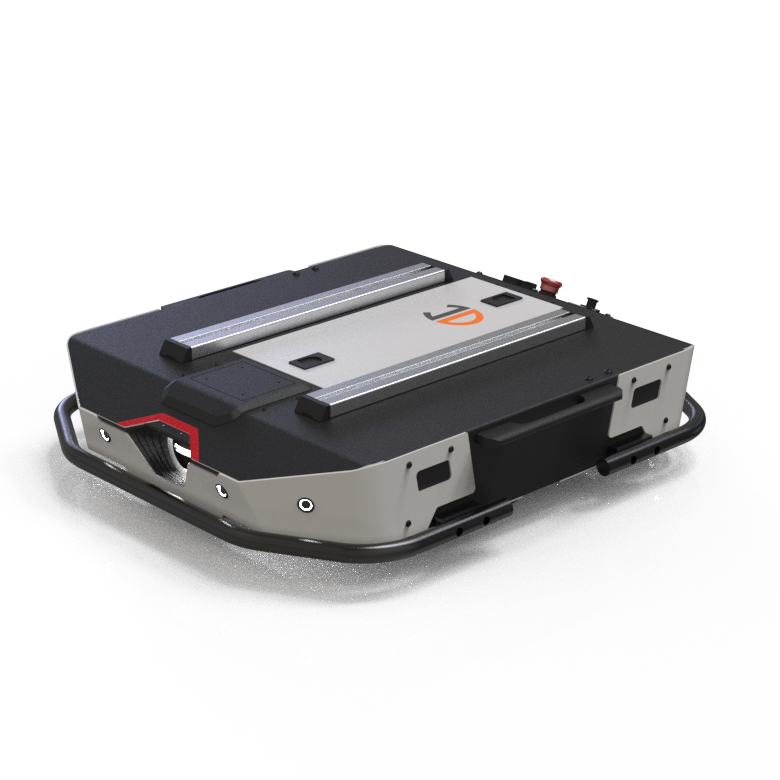

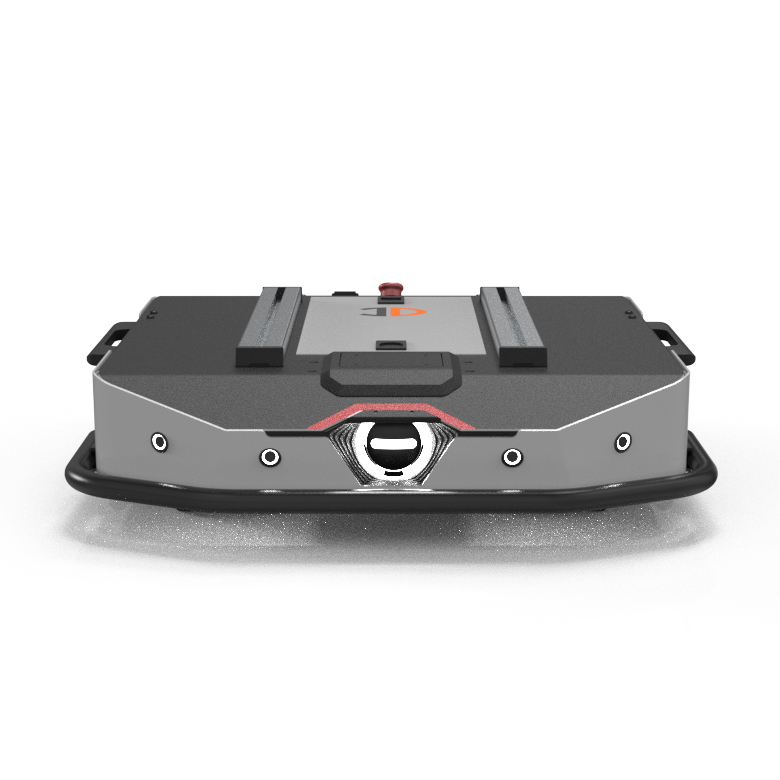

tracer

A drive-by-wire chassis for indoor AGVs. Highly cost-effective development platform for unmanned delivery and logistics applications.

high speed AGV

key benefits of tracer

highly cost effective

The cost-effectiveness of this high speed AGV often translates into a quicker ROI compared to other automation solutions. The efficiency gains, labour savings, and improved operational productivity contribute to a shorter payback period, making them an attractive investment option.

high speed

Tracer can transport goods and materials at higher speeds, resulting in improved overall throughput and productivity. This AGV can quickly move between different locations, reducing cycle times and increasing the number of tasks completed within a given time frame.

payload capacity

The payload that Tracer can handle means it can transport a wide range of heavy objects, including large components, machinery parts, and equipment. It offers flexibility in material handling operations, allowing for the automation of diverse tasks such as loading and unloading, assembly, palletizing, and machine tending.

tracer technical drawings

robot development kits

155mm high

685mm long

570mm wide

tracer specifications

Dimensions	660mm x 516mm x 163.5mm
Weight	30kg
Payload	100kg
Battery	24V15Ah (Upgradable to 24V30Ah)
Charging Time	2 hours
Power Supply Output	24V 5A
Operating Time (No Load)	4 hours
Communication	CAN and Serial Interfaces
Maximum Speed (No Load)	1.6m/s
Maximum Climbable Obstacle Height (No Load)	10mm
Maximum Climbable Slope (No Load)	8°
Minimum Ground Clearance	30mm
Motors	Two 150W Brushless Motors
