titan

The AMR Titan features advanced ackermann steering configurations in the front and rear, enhancing maneuverability. Thanks to the Titan’s adaptive front swing arms and rear shock absorbers, it effectively increases ground load, leading to improved stability, driving performance, and cornering ability. Even on challenging surfaces like wet, slick, loose, uneven terrain, or steep hills, Titan maintains stability and provides smooth acceleration. Its easily accessible and portable dual-sided battery compartment facilitates swift battery replacement and quick-charging hot swapping.

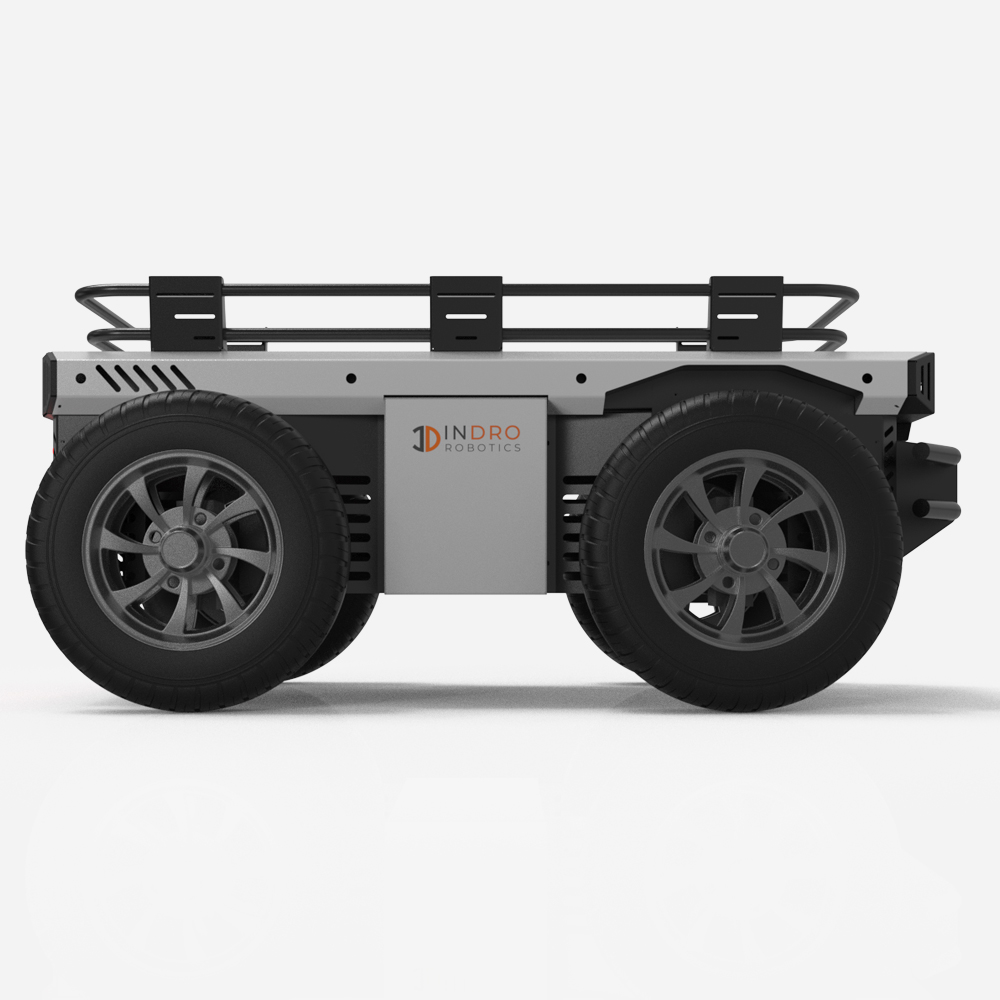

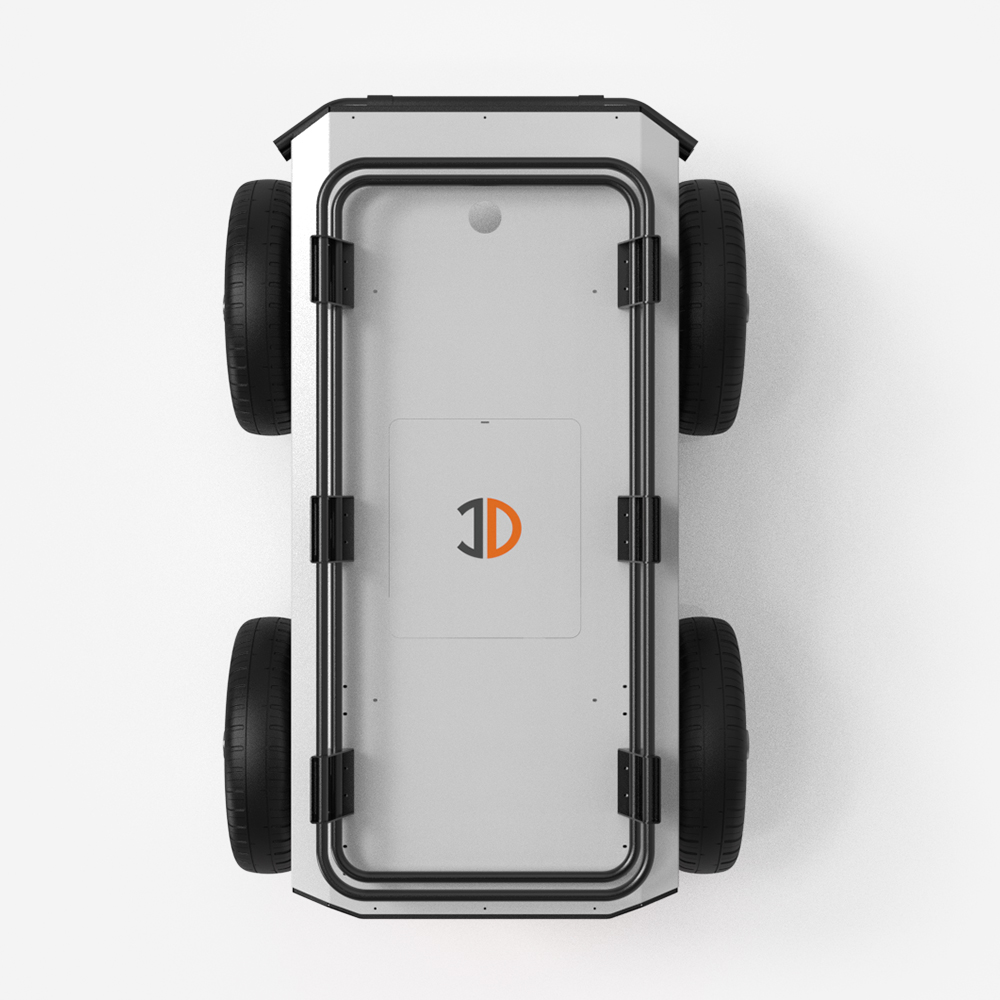

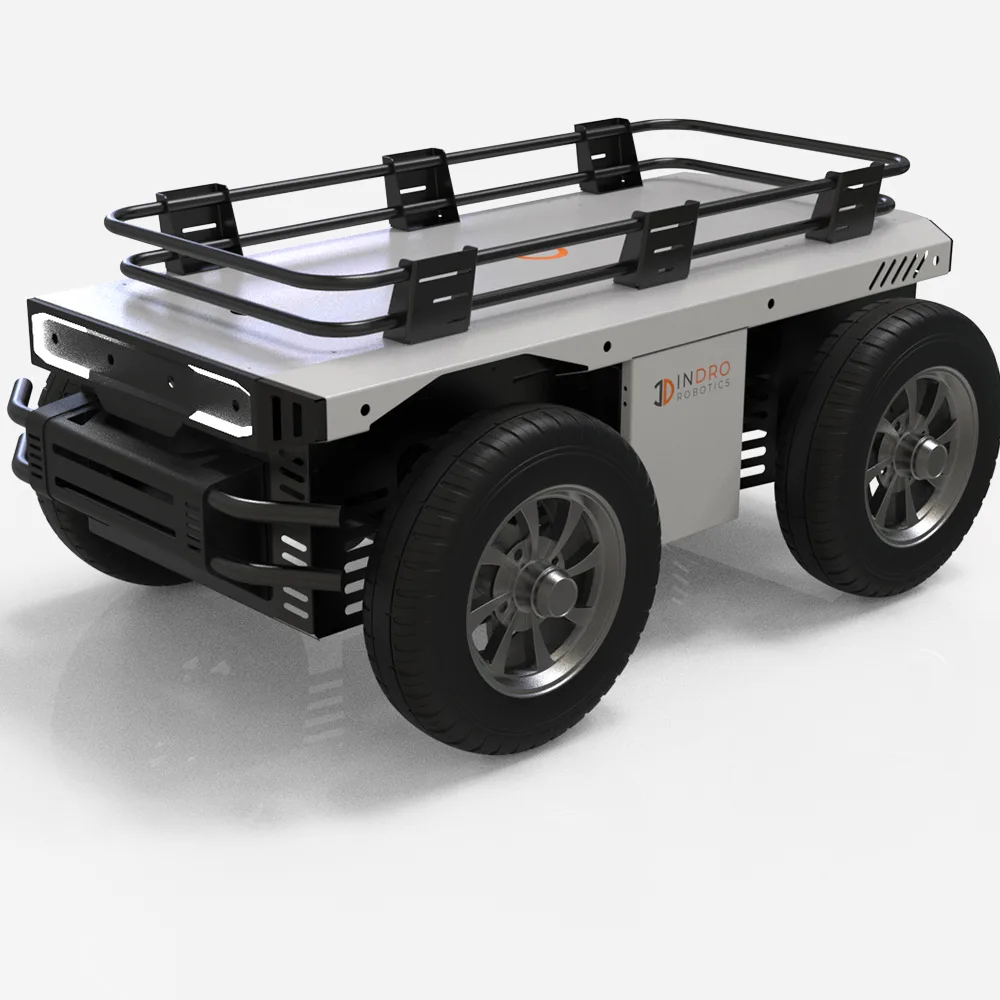

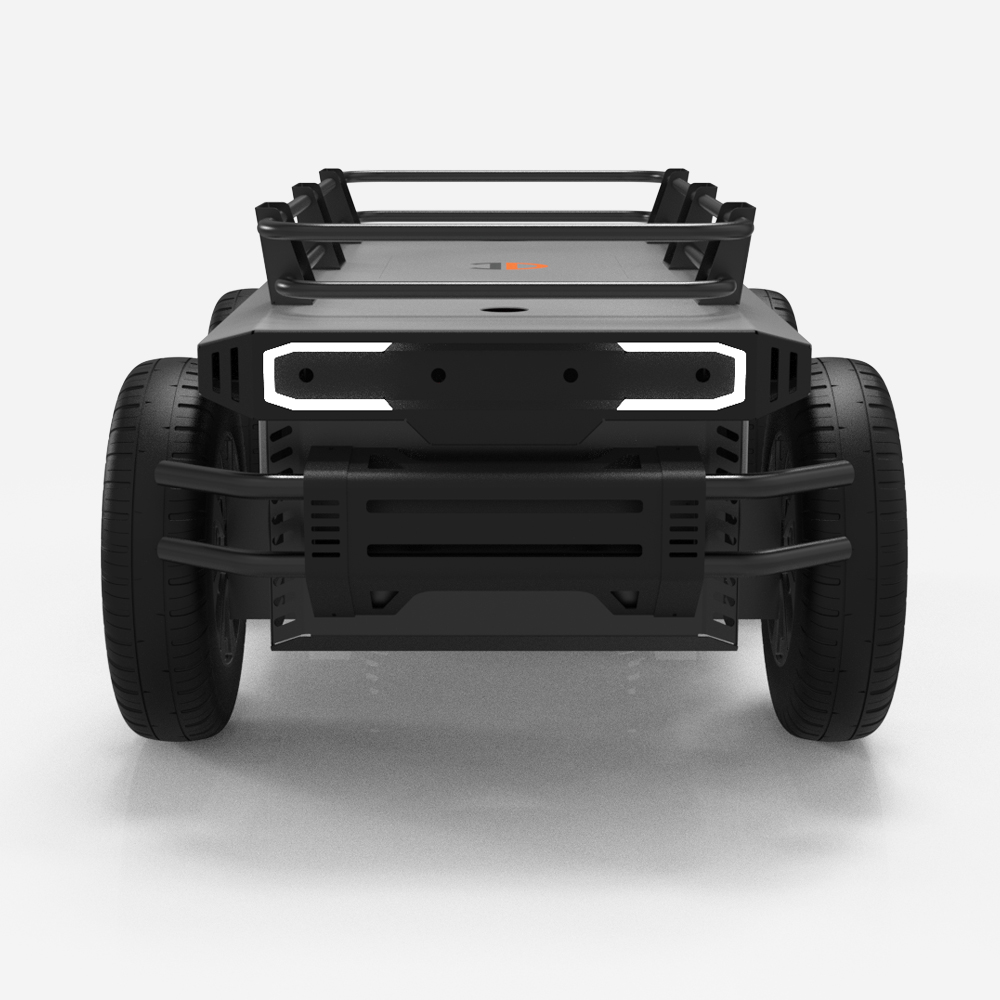

AMR titan robot

key benefits of titan

Enhanced Maneuverability

Titan robot chassis features advanced ackerman steering configurations in the front and rear, which greatly improve its maneuverability, making it adept at navigating diverse environments.

Smooth Acceleration

The AMR Titan provides smooth acceleration even on difficult driving surfaces like wet, slick, loose, uneven terrain, or steep hills, ensuring consistent performance.

Versatile Applications

The Titan robot is suitable for a wide range of industries, including industrial automation, logistics, environmental monitoring, and scientific research, making it adaptable for various tasks.

tech specs

robot development kits

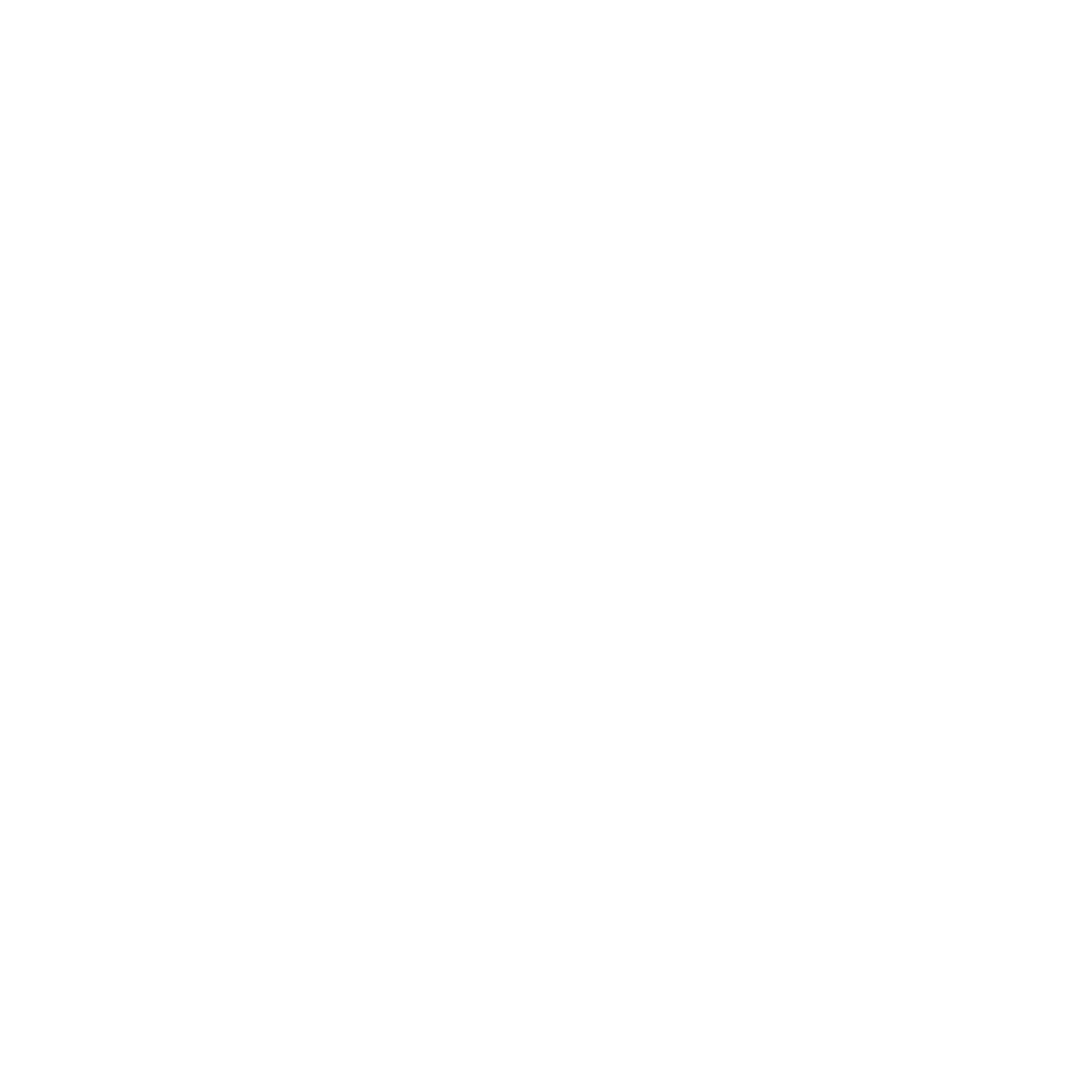

980mm high

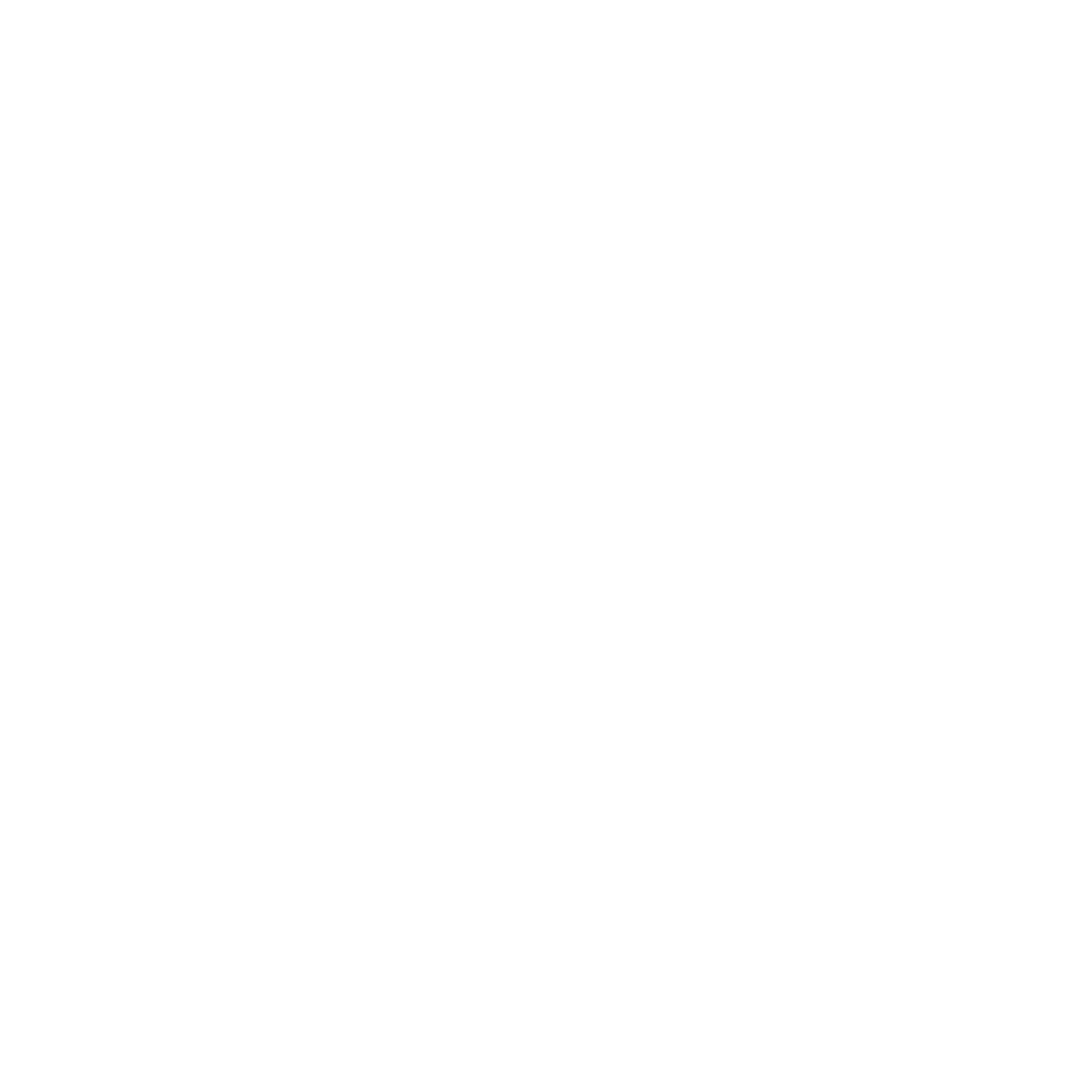

1550mm long

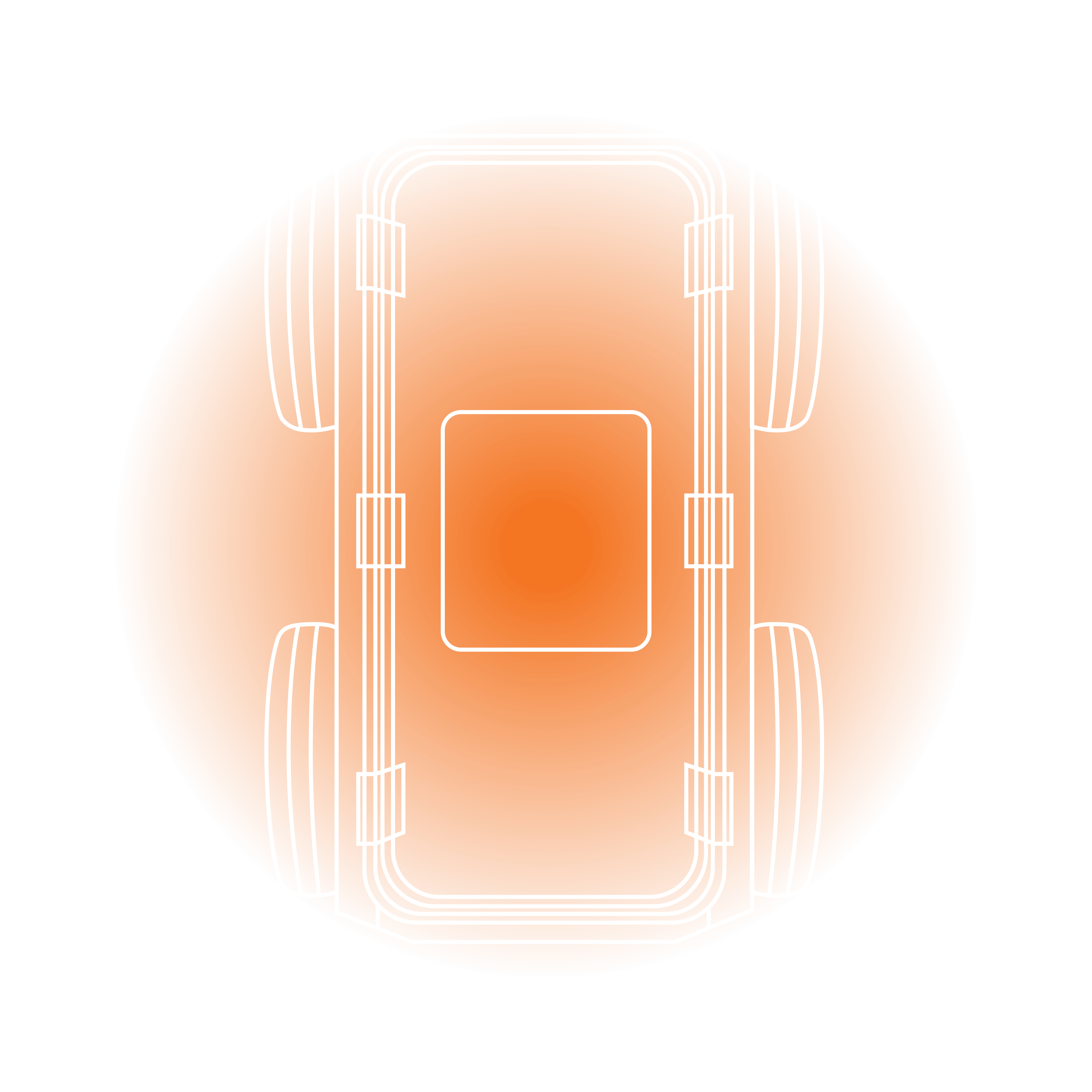

710mm wide

titan specifications

Dimensions (mm)	1550 X 980 X 710
Wheelbase (mm)	860
Front/Rear Wheel Track(mm)	854
Weight(Kg)	280kg
Battery Type	One Lithium Battery 48V 24Ah (Supports 2 batteries)
Power Drive Motor	Permanent Magnet Synchronous DC Motor 2*1000W
Steering Drive Motor	DC Servo Motor 2*400W
Drive Gearbox	1: 23
Steering Gearbox	1: 40
Parking Method	DC Electromagnetic Brake
Steering	Front/Rear Wheel Ackermann
Encoder	Incremental Magnetic Encoder 1024
Max Inner Wheel Steering Angle	21°
Max Speed (Empty)(m/s)	3
Mini Turning Radius(m)	1.9
Max Climbing Ability	10°
Mini Ground Clearance(mm)	160
Operating Temperature	-10~45C°
Max Obstacle Clearance Height	120mm
Payload	300kg
Control Mode	Remote Control
Remote Control	2.4G / Max Distance 100m
Communication Interface	CAN
