indro cortex

Quickly customize your own robotics solution using the InDro Cortex. A compact developer kit with critical software and hardware designed to simplify payload integration and enable turn-key teleoperations. Ideal for robotics, autonomous vehicles, industrial automation, advanced sensor integration, and embedded computing environments demanding high performance and flexibility. teleoperated robots

key features of cortex

platform agnostic

Where there are diverse robot platforms or when the robot platform may change or evolve over time, this platform agnostic developer kit is the answer. It allows developers to focus on the core functionality of their application rather than worrying about platform-specific intricacies, enabling faster development, easier maintenance, and broader accessibility of their software across different devices or systems.

quickly customize your own robotics

InDro Cortex is designed to allow developers to quickly customize their own robotic solution. The following are common additions that can be easily added to any Cortex-controlled robotic system: LiDAR (2D/3D), IP65+ Ratings, PTZ Camera, Thermal Cameras, Wireless Charging, IMU, RTK.

flexibility and scalability

The modular design allows end-users to seamlessly upgrade platforms in the future by removing Cortex from the old system and bolting it onto the new one. Additional modules or subsystems can be added to enhance functionality or increase capability, while unnecessary modules can be removed to optimize performance or reduce complexity. This allows for efficient resource allocation and future expansion as requirements evolve.

turn any platform into a functional robot

1. select your cortex

Select the version of InDro Cortex that provides the level of control needed to meet your project’s requirements.

InDro Cortex Robot Developer Kit, Platform Agnostic Robot Brain

2. choose your platform

Choose from a wide variety of reliable, time-tested platforms available through InDro Robotics.

Specification	Details
Dimensions	11cm x 14cm x 10cm
Weight	679g
Materials	Nylon Pro 1172
Mounting	Screws, Adhesive, etc.
Capability	System-Agnostic
Compute Power	ORIN NX (100 TOPS)
Connectivity	Wi-Fi, 5G (eSIM)
Operating System	Ubuntu 22.04
ROS Version	ROS2 Humble
Storage	1TB to 2TB

Package	Options
Teleoperation	HD Pinhole Camera, Insta360 Camera
Perception	Zed21 RGBD Camera, Robosense Airy, Robosense Helios-32 5515
Awareness	PhidgetSpatial IMU, 3DM-GV7-INS, TW5794 GNSS

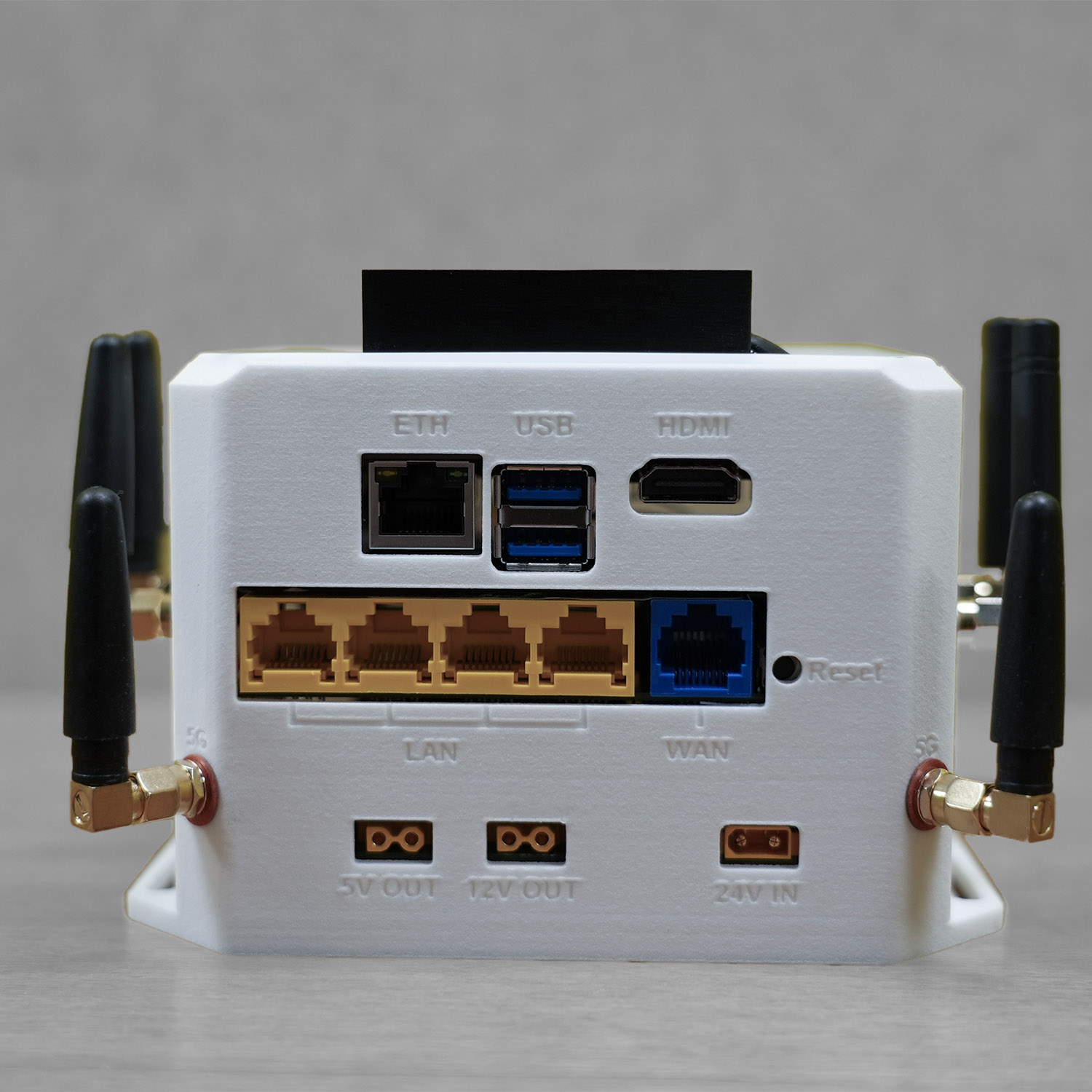

I/O Ports

2x USB3.0 Type-A, 1x HDMI Display, 1x WAN RJ-
45 GbE, 3x LAN RJ-45 GbE, 1x XT30-M 24V
Power Input, 1x XT30-F 12V 10A Power Output, 1x XT30-F 5V 10A Power Output, 1x Nano-SIM
Slot (other I/O exposed upon request)
