NVIDIA Jetson Xavier NX Developer Kit
The Stereolabs ZED Box is an industrial AI gateway offering powerful edge computing capabilities for autonomous robotics and spatial analytics. Specifically designed to use with the ZED 2 and ZED 2i cameras, it is powered by an NVIDIA® Jetson™ embedded GPU, enabling deployment of state-of-the-art AI and 3D vision solutions.
Processor Specifications
- NVIDIA® Jetson™ Xavier NX
- GPU: 384-Core NVIDIA® Volta™ with 48 Tensor Cores
- CPU : 6-Core NVIDIA® Carmel ARM v8.2 64 bit (6MB L2 + 4MB L3)
- DL accelerator: 2xNVDLA
- Memory : 8GB LPDDR4x 59.7 GB/s
General Specifications
- Power: PoE+(30W) or DC-IN 5A 12-19V

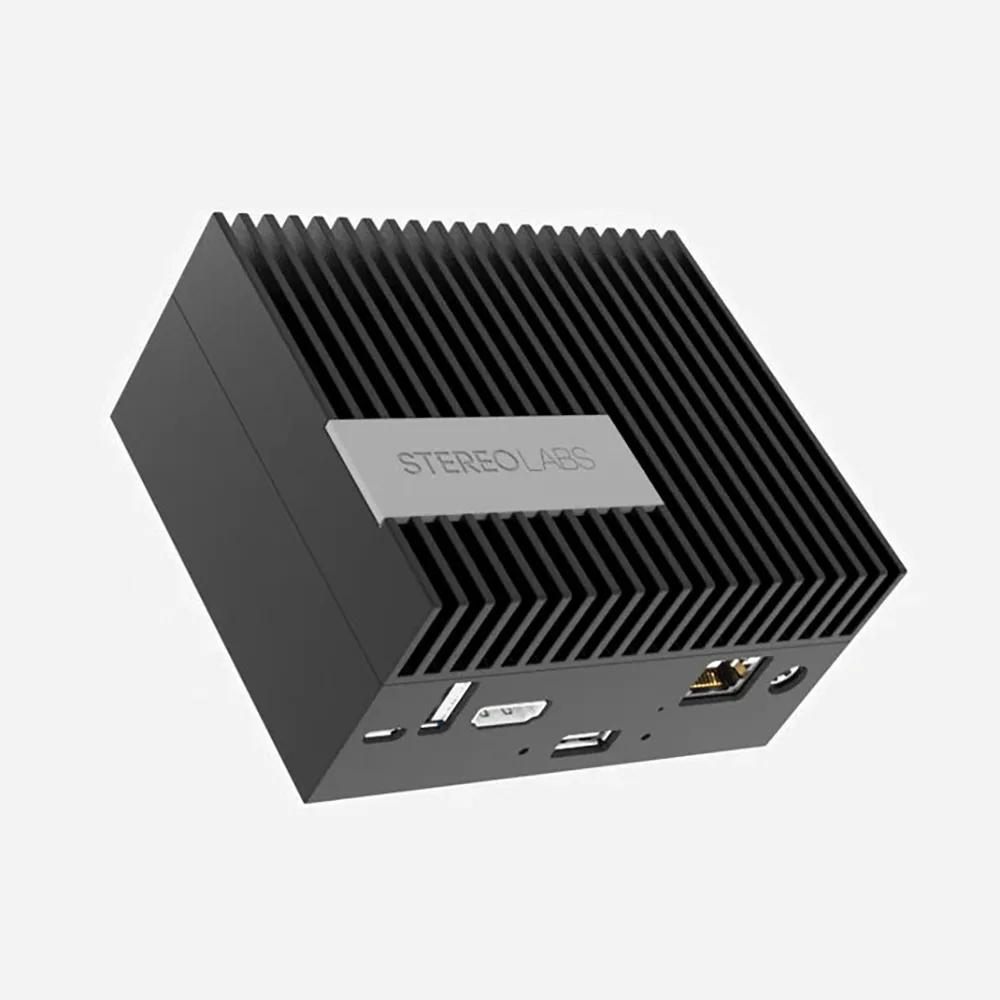

- Aluminium case passively cooled
- Dimensions: 109 x 92 x 52 mm (LxWxH) / 4.3 x 3.6 x 2.0 inches

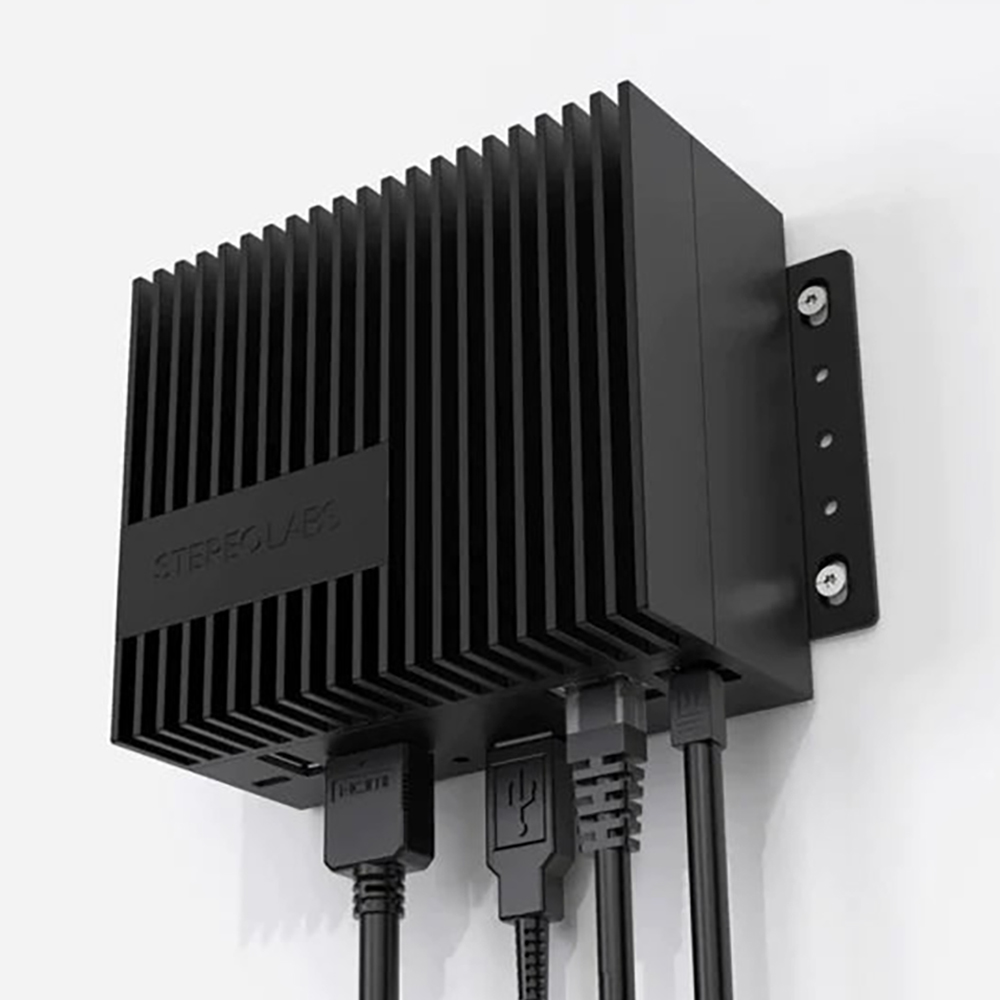

Mounting options: 84x45mm mounting holes, wall (brackets provided) and DIN-rail mounting - Weight: 1 kg (2.20lb)
Storage Options
- eMMC 16GB
- NVMe SSD 256GB or 1TB
What's In the Box
- 1x ZED Box Xavier NX 8GB
- 1x Power supply
- 2x Mounting brackets
- 1x Mini-USB to USB cable
